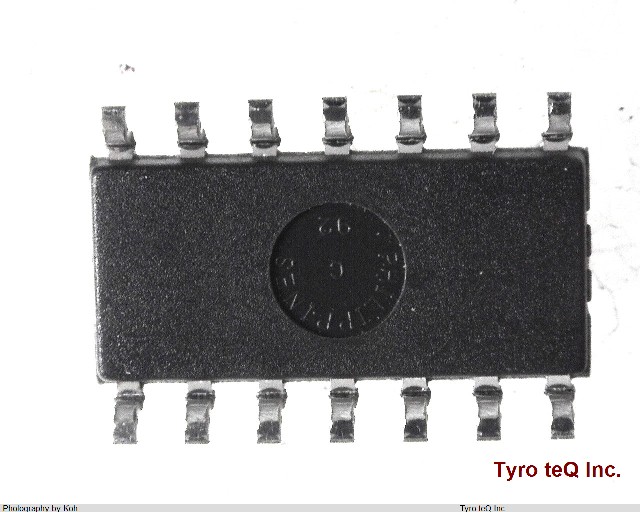

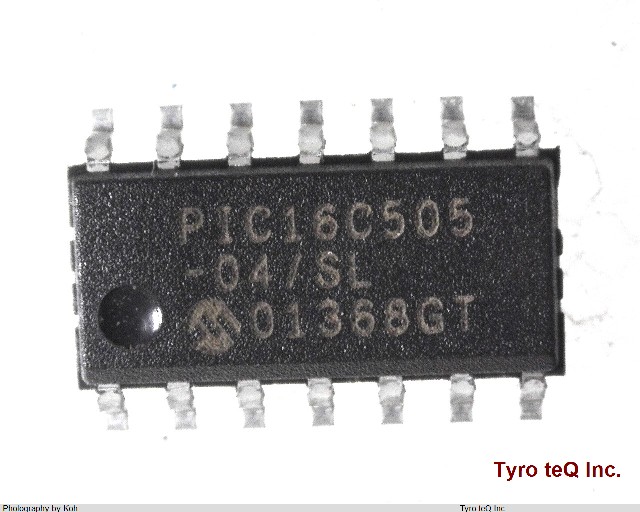

PIC16C505-04/SL
  • PIC16C505-04/SL
  • PIC16C505-04/SL
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

PIC16C505-04/SL の詳細情報

  • 仕様・詳細
  • メーカー情報
型番PIC16C505-04/SL
メーカーMICROCHIP
データシートProduct_list_pdf
ADC Channels NO
Address Bus Width 0
Bit Size 8
Boundary Scan NO
CPU Family PIC16
Clock Frequency-Max 4 MHz
DAC Channels NO
DMA Channels NO
Data EEPROM Size 0
External Data Bus Width 0
Format FIXED POINT
Integrated Cache NO
JESD-30 Code R-PDSO-G14
JESD-609 Code e3
Length 8.65 mm
Low Power Mode YES
Moisture Sensitivity Level 1
Number of I/O Lines 11
Number of Terminals 14
Number of Timers 2
On Chip Data RAM Width 8
On Chip Program ROM Width 12
Operating Temperature-Max 70 Cel
Operating Temperature-Min 0 Cel
PWM Channels NO
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP14,.24
Package Shape RECTANGULAR
Package Style SMALL OUTLINE Meter
Peripherals POR, TIMER(2), WDT
Power Supplies 3.3/5 V
Qualification Status Not Qualified
RAM (bytes) 72
RAM (words) 72
ROM (words) 1024
ROM Programmability OTPROM
Screening Level TS 16949
Seated Height-Max 1.75 mm
Speed 4 rpm
Sub Category Microcontrollers
Supply Current-Max 1.4 mA
Supply Voltage-Max 5.5 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 4.5 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
