PIC16C505-04/P Microchip

PIC16C505-04/P - MICROCHIP の商品詳細ページです。

1

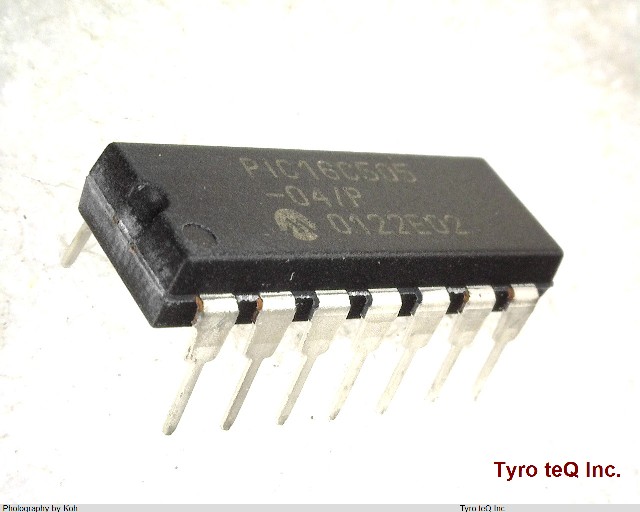

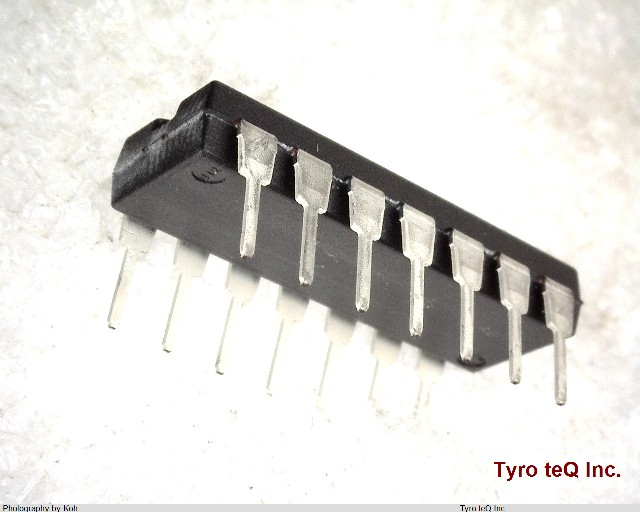

PIC16C505-04/P
  • PIC16C505-04/P
  • PIC16C505-04/P
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

PIC16C505-04/P の詳細情報

  • 仕様・詳細
  • メーカー情報
型番PIC16C505-04/P
メーカーMICROCHIP
ADC Channels NO
Address Bus Width 0
Bit Size 8
CPU Family PIC16
Clock Frequency-Max 4 MHz
DAC Channels NO
DMA Channels NO
Data EEPROM Size 0
External Data Bus Width 0
JESD-30 Code R-PDIP-T14
JESD-609 Code e3
Length 19.05 mm
Number of DMA Channels 0
Number of I/O Lines 11
Number of Terminals 14
Number of Timers 1
On Chip Data RAM Width 8
On Chip Program ROM Width 12
Operating Temperature-Max 70 Cel
Operating Temperature-Min 0 Cel
PWM Channels NO
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP14,.3
Package Shape RECTANGULAR
Package Style IN-LINE Meter
Peripherals LED, POR, TIMER, WDT
Power Supplies 3.3/5 V
Qualification Status Not Qualified
RAM (bytes) 72
RAM (words) 72
ROM (words) 1024
ROM Programmability OTPROM
Seated Height-Max 5.33 mm
Speed 4 rpm
Sub Category Microcontrollers
Supply Current-Max 1.4 mA
Supply Voltage-Max 5.5 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 5 V
Surface Mount NO
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish MATTE TIN
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Width 7.62 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
会社名称Microchip Technology Inc.
所在地2355 West Chandler Blvd. Chandler, Arizona, USA 85224-6199
URLhttp://www.microchip.com/

PIC16C505-04/Pのレビュー

PIC16C505-04/P のご注文について
