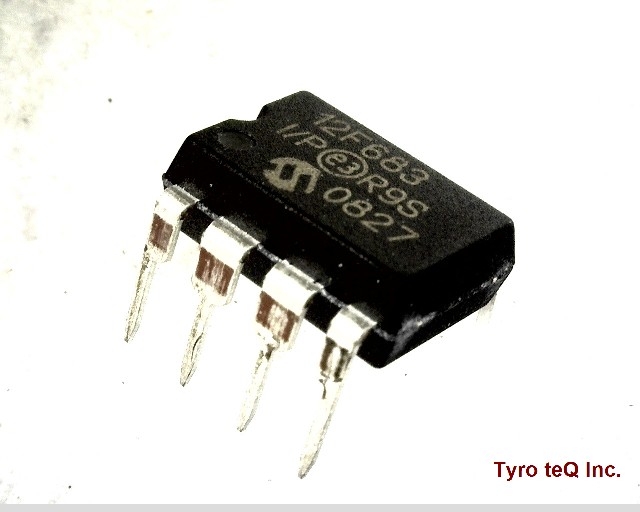

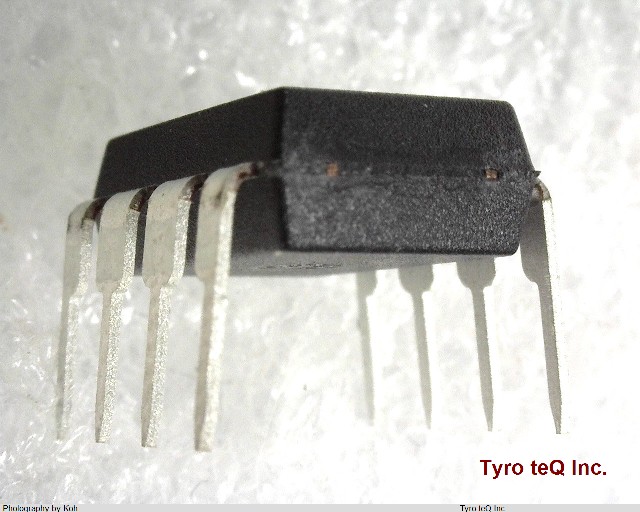

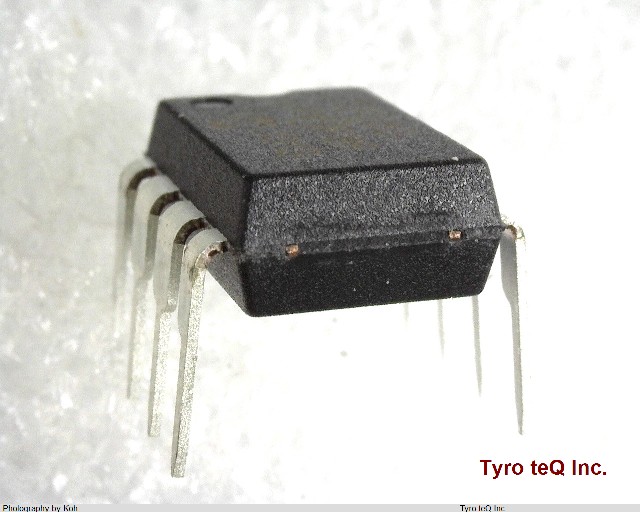

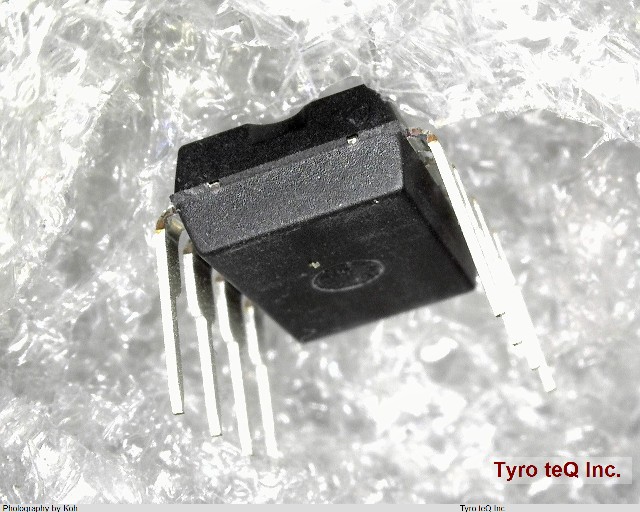

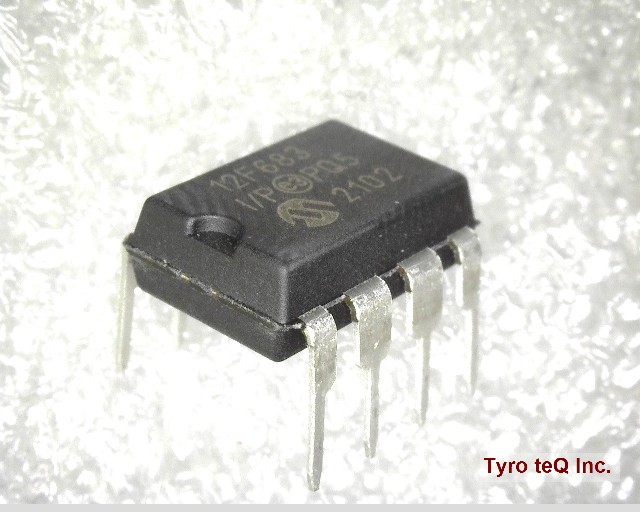

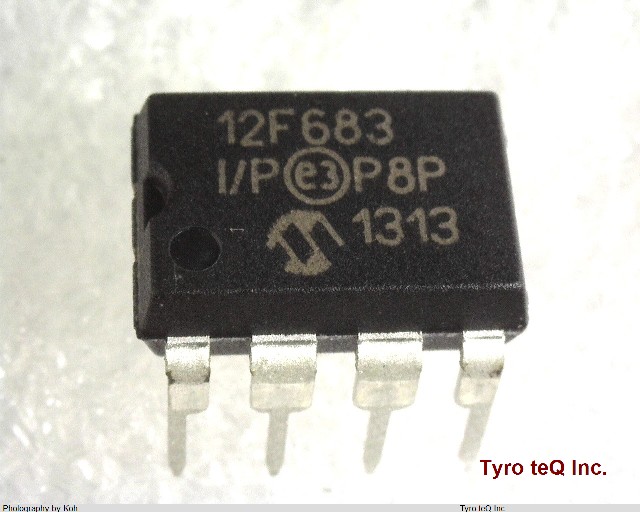

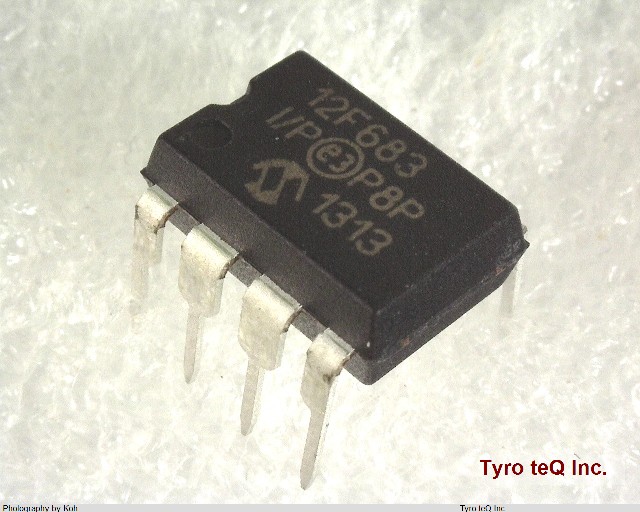

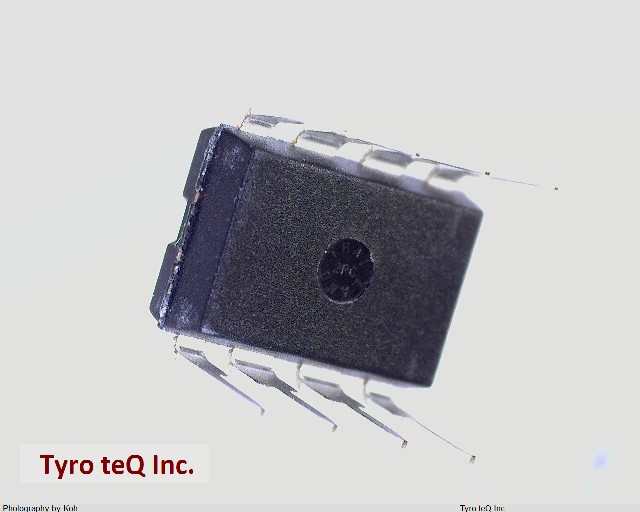

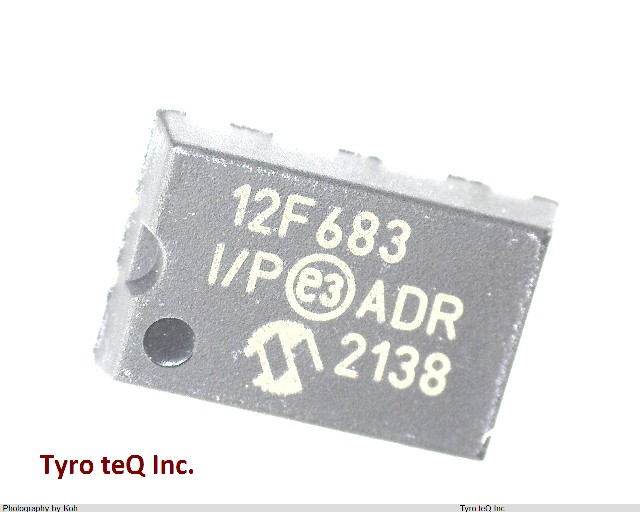

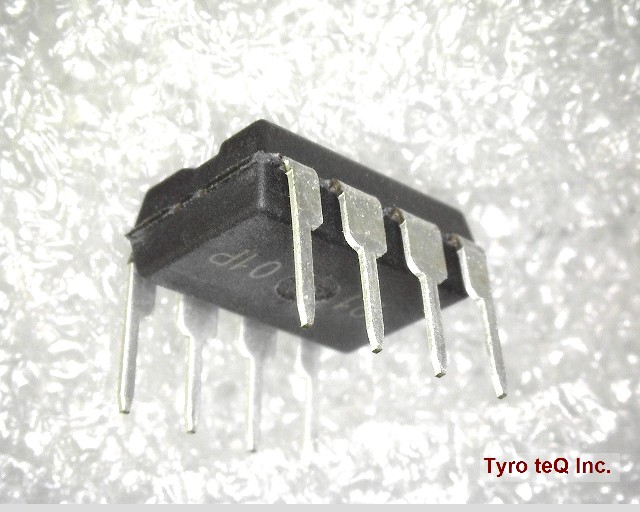

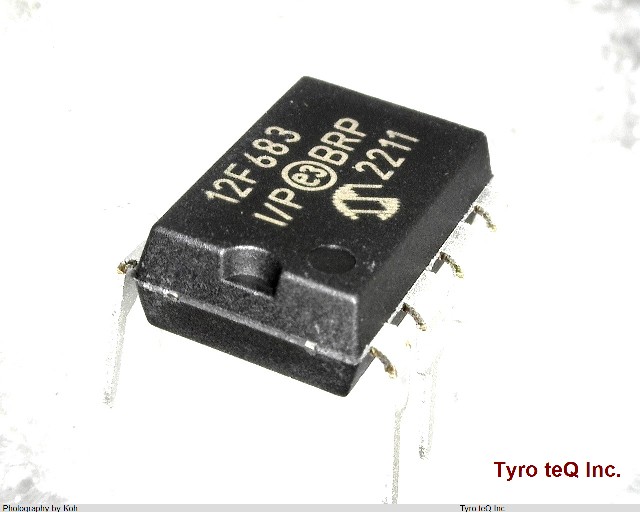

PIC12F683-I/P データシート

Name: PIC12F683-I/P
Brand: MICROCHIP
SKU: 260077282-0000-0000-0000

PIC12F683-I/P - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

PIC12F683-I/P の詳細情報

型番	PIC12F683-I/P
メーカー	MICROCHIP
データシート
A/D Converters	4-Ch 10-Bit
ADC Channels	YES
Additional Feature	ALSO OPERATES BY 3V MINIMUM SUPPLY AT 10 MHZ
Address Bus Width	0
Bit Size	8
CPU Family	PIC
Clock Frequency-Max	20 MHz
DAC Channels	NO
DMA Channels	NO
Data EEPROM Size	256
External Data Bus Width	0
JESD-30 Code	R-PDIP-T8
JESD-609 Code	e3
Length	9.27 mm
Number of I/O Lines	6
Number of Terminals	8
On Chip Program ROM Width	14
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	260
Peripherals	BOD, COMPARATOR, POR, PWM, TIMER(3), WDT
Power Supplies	2/5 V
Qualification Status	Not Qualified
RAM (bytes)	128
ROM (words)	2048
ROM Programmability	FLASH
Seated Height-Max	5.33 mm
Speed	20 rpm
Sub Category	Microcontrollers
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	7.62 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
