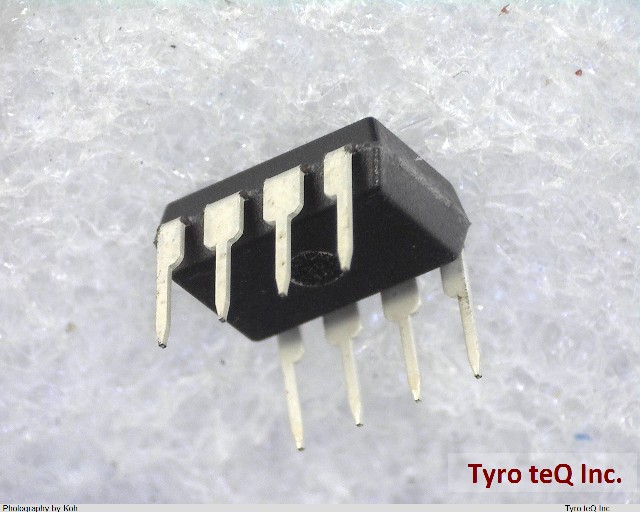

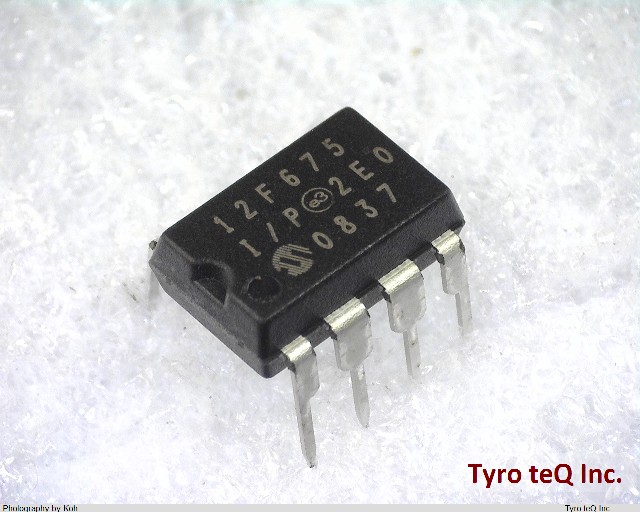

PIC12F675-I/P-G データシート

Name: PIC12F675-I/P-G
Brand: MICROCHIP
SKU: 260076481-0000-0000-0000

PIC12F675-I/P-G - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

PIC12F675-I/P-G の詳細情報

型番	PIC12F675-I/P-G
メーカー	MICROCHIP
データシート
A/D Converters	4-Ch 10-Bit
ADC Channels	YES
Additional Feature	CAN ALSO OPERATE AT 4MHZ AT 2VMIN SUPPLY AND 10MHZ AT 3V MIN SUPPLY
Address Bus Width	0
Bit Size	8
Boundary Scan	NO
CPU Family	PIC12
Clock Frequency-Max	20 MHz
DAC Channels	NO
DMA Channels	NO
Data EEPROM Size	128
External Data Bus Width	0
Format	FLOATING POINT
Integrated Cache	NO
JESD-30 Code	R-PDIP-T8
JESD-609 Code	e3
Length	9.271 mm
Low Power Mode	NO
Number of External Interrupts	1
Number of I/O Lines	6
Number of Terminals	8
Number of Timers	2
On Chip Data RAM Width	8
On Chip Program ROM Width	14
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
PWM Channels	NO
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peripherals	BOD, COMPARATOR, POR, TIMER(2), WDT
Qualification Status	Not Qualified
RAM (bytes)	64
ROM (words)	1024
ROM Programmability	FLASH
Screening Level	TS 16949
Seated Height-Max	5.334 mm
Speed	20 rpm
Supply Current-Max	3 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
