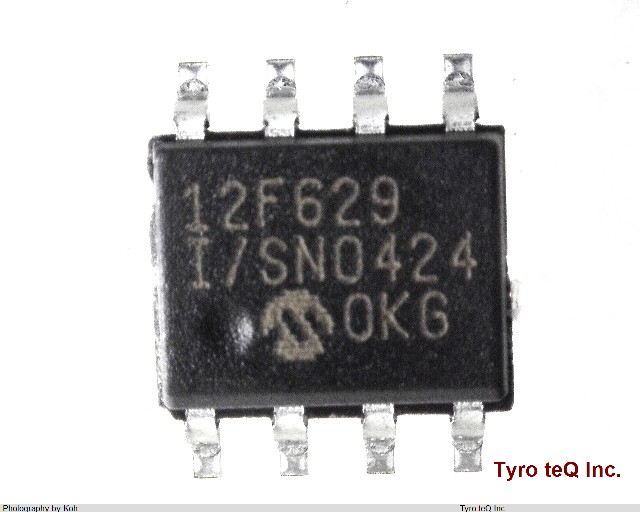

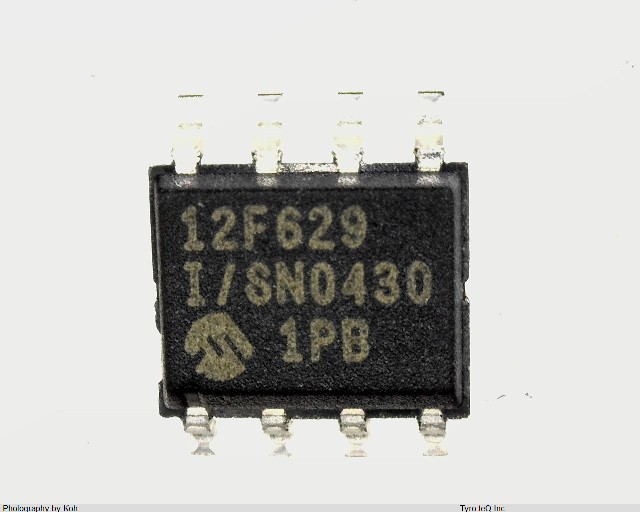

PIC12F629I/SN データシート

Name: PIC12F629I/SN
Brand: MICROCHIP
SKU: 260005461-0000-0000-0000

PIC12F629I/SN - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

PIC12F629I/SN の詳細情報

型番	PIC12F629I/SN
メーカー	MICROCHIP
データシート
ADC Channels	NO
Additional Feature	CAN ALSO OPERATE AT 4MHZ AT 2VMIN SUPPLY AND 10MHZ AT 3V MIN SUPPLY
Address Bus Width	0
Bit Size	8
Boundary Scan	NO
CPU Family	PIC
Clock Frequency-Max	20 MHz
Clock Frequency-Max (MHz)	20
DAC Channels	NO
DMA Channels	NO
Data EEPROM Size	128
External Data Bus Width	0
Format	FIXED POINT
Integrated Cache	NO
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e3
Length	4.9 mm
Low Power Mode	NO
Moisture Sensitivity Level	1
Number of External Interrupts	1
Number of I/O Lines	6
Number of Terminals	8
Number of Timers	2
On Chip Data RAM Width	8
On Chip Program ROM Width	14
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
PWM Channels	NO
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.23
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Peripherals	BOD, COMPARATOR, POR, TIMER(2), WDT
RAM (bytes)	64
ROM (words)	1024
ROM Programmability	FLASH
Screening Level	AEC-Q100; TS 16949
Seated Height-Max	1.75 mm
Speed	20 rpm
Supply Current-Max	3 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
