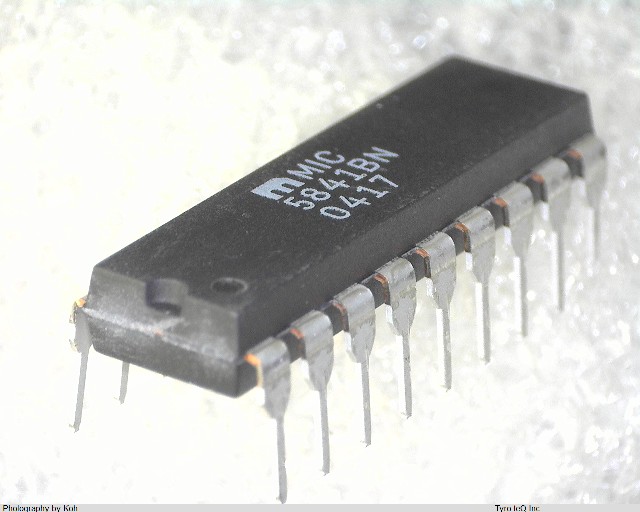

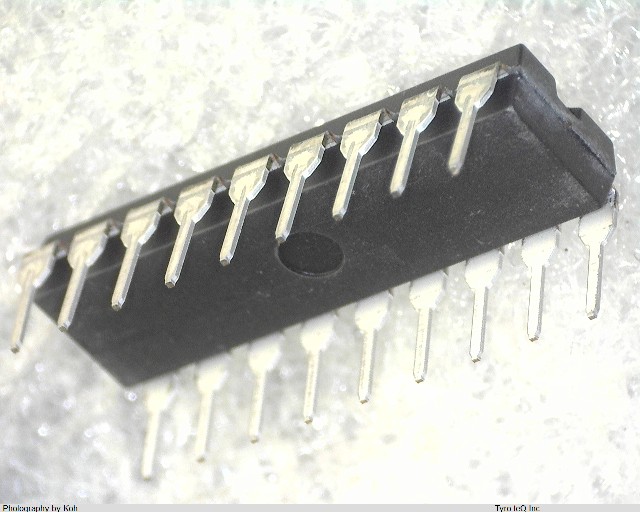

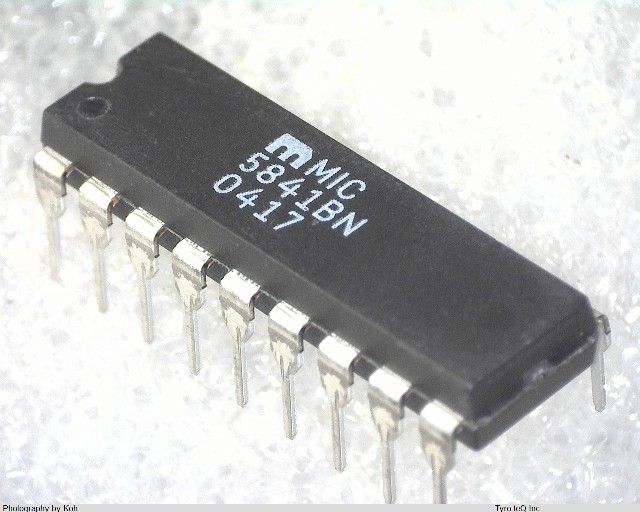

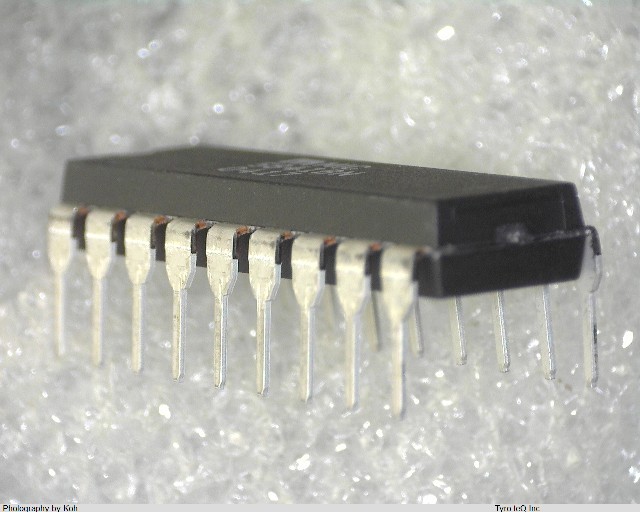

MIC5841BN データシート

Name: MIC5841BN
Brand: MICROCHIP
SKU: 230054049-0000-0000-0000

MIC5841BN - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

MIC5841BN の詳細情報

型番	MIC5841BN
メーカー	MICROCHIP
データシート
Built-in Protections	TRANSIENT
Driver Number of Bits	8
Input Characteristics	STANDARD
Interface IC Type	SIPO BASED PERIPHERAL DRIVER
JESD-30 Code	R-PDIP-T18
JESD-609 Code	e0
Number of Functions	1
Number of Terminals	18
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Current Flow Direction	SINK
Output Current-Max	0.35 A
Output Peak Current Limit-Nom	0.5 A
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP18(UNSPEC)
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	240
Power Supplies	5/12 V
Qualification Status	Not Qualified
Seated Height-Max	3.937 mm
Sub Category	Peripheral Drivers
Supply Current-Max	0.016 mA
Supply Voltage-Max	12 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	BICMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	7.62 mm
