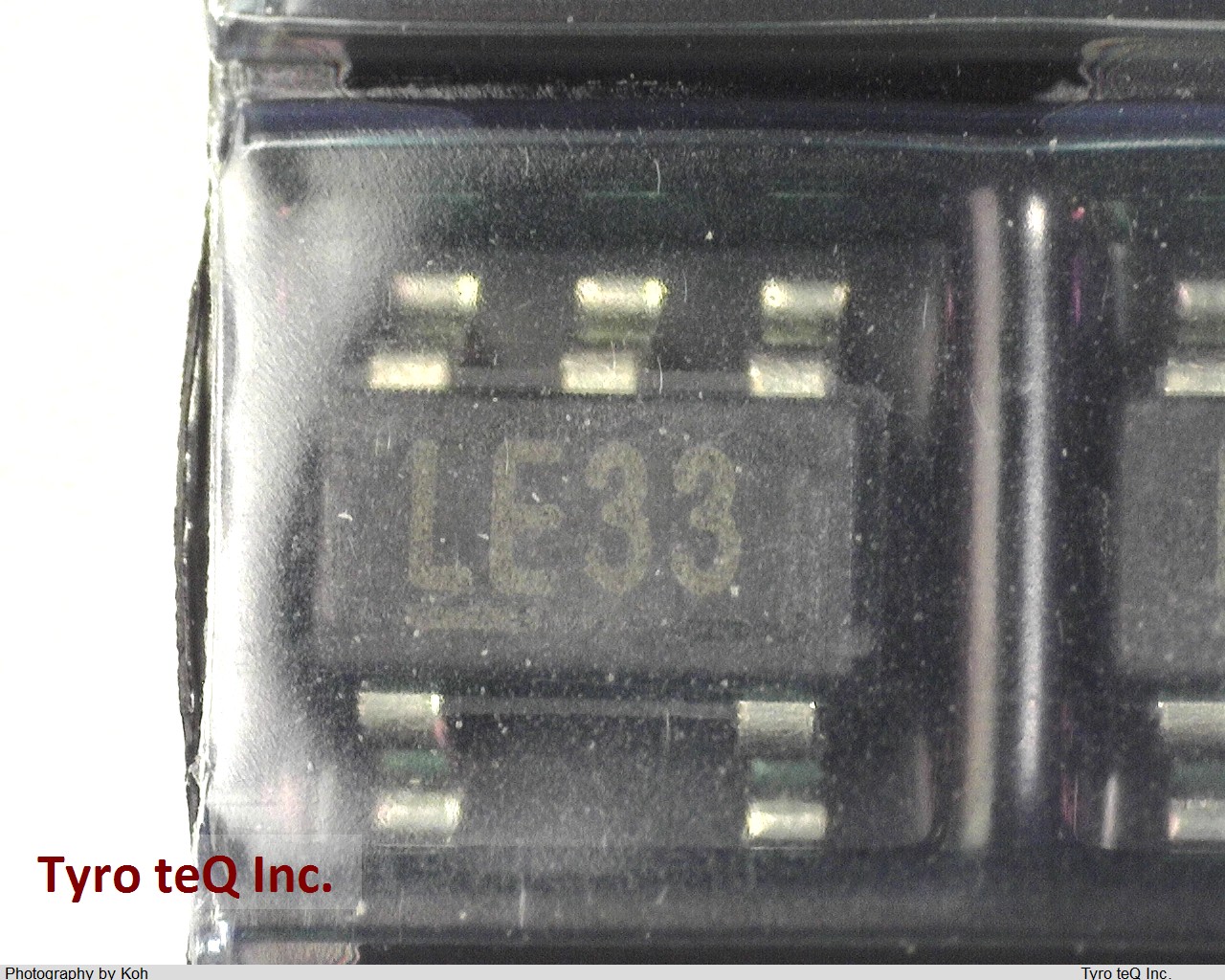

MIC5207-3.3YM5TR

Name: MIC5207-3.3YM5TR
Brand: MICROCHIP
SKU: 230760874-0000-0000-0000

MIC5207-3.3YM5TR - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

MIC5207-3.3YM5TR の詳細情報

型番	MIC5207-3.3YM5TR
メーカー	MICROCHIP
Adjustability	FIXED
Dropout Voltage1-Max	0.4 V
Dropout Voltage1-Nom	0.165 V
Input Voltage Absolute-Max	20 V
Input Voltage-Max	16 V
Input Voltage-Min	2.5 V
JESD-30 Code	R-PDSO-G5
JESD-609 Code	e4
Length	2.9 mm
Line Regulation-Max	0.0033 %
Load Regulation-Max	0.0231 %
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	1
Number of Terminals	5
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	-40 Cel
Output Current1-Max	0.18 A
Output Voltage1-Max	3.432 V
Output Voltage1-Min	3.168 V
Output Voltage1-Nom	3.3 V
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Equivalence Code	TSOP5/6,.11,37
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max	1.45 mm
Sub Category	Other Regulators
Surface Mount	YES
Technology	BIPOLAR
Terminal Finish	NICKEL PALLADIUM GOLD
Terminal Form	GULL WING
Terminal Pitch	0.95 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	40
Voltage Tolerance-Max	4 %
Width	1.6 mm
