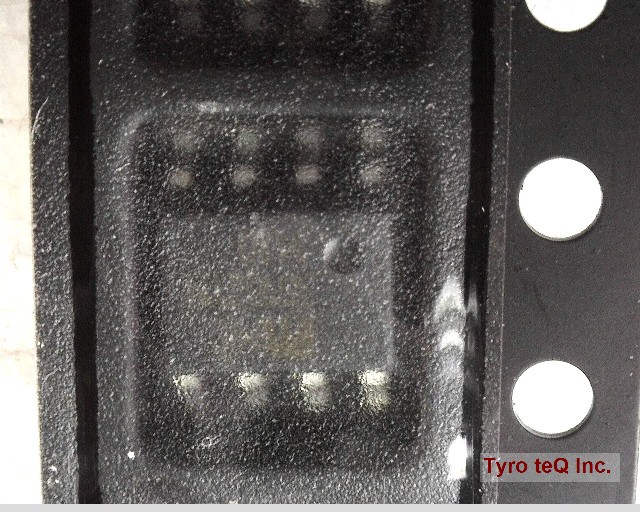

MIC39102YM TR

Name: MIC39102YM TR
Brand: MICROCHIP
SKU: 400057545-0000-0000-0000

MIC39102YM TR - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

MIC39102YM TR の詳細情報

型番	MIC39102YM TR
メーカー	MICROCHIP
Adjustability	ADJUSTABLE
DLA Qualification	Not Qualified
Dropout Voltage1-Max	0.63 V
Dropout Voltage1-Max (V)	0.63
Dropout Voltage1-Nom (V)	0.14
J-STD-609 Code	e4
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e4
Length	4.93 mm
Length (mm)	4.93
Load Regulation-Max (%)	1
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	1
Number of Terminals	8
Operating Temperature TJ-Max (Cel)	125
Operating Temperature TJ-Min (Cel)	-40
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	-40 Cel
Output Current1-Max	1 A
Output Current1-Max (A)	1
Output Voltage1-Max	16 V
Output Voltage1-Max (V)	16
Output Voltage1-Min	1.24 V
Output Voltage1-Min (V)	1.24
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Regulator Type	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Screening Level / Reference Standard	TS 16949
Seated Height-Max	1.73 mm
Seated Height-Max (mm)	1.73
Surface Mount	YES
Terminal Finish	NICKEL PALLADIUM GOLD
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Pitch (mm)	1.27
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	3.94 mm
Width (mm)	3.94
