MIC3172BM データシート

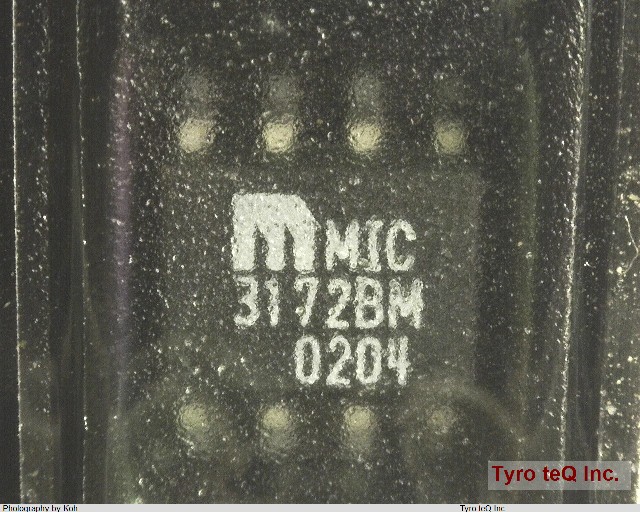

Name: MIC3172BM
Brand: MICROCHIP
SKU: 230053772-0000-0000-0000

MIC3172BM - MICROCHIP の商品詳細ページです。

No Image

２営業日以内に回答いたします

MIC3172BM の詳細情報

型番	MIC3172BM
メーカー	MICROCHIP
データシート
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	CURRENT-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	40 V
Input Voltage-Min	3 V
Input Voltage-Nom	5 V
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e0
Length	4.9 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	3.5 A
Output Voltage-Nom	1.24 V
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	240
Qualification Status	Not Qualified
Seated Height-Max	1.73 mm
Sub Category	Switching Regulator or Controllers
Supply Current-Max (Isup)	9 mA
Surface Mount	YES
Switcher Configuration	SINGLE
Switching Frequency-Max	115 kHz
Technology	BIPOLAR
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN LEAD
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Width	3.9 mm
