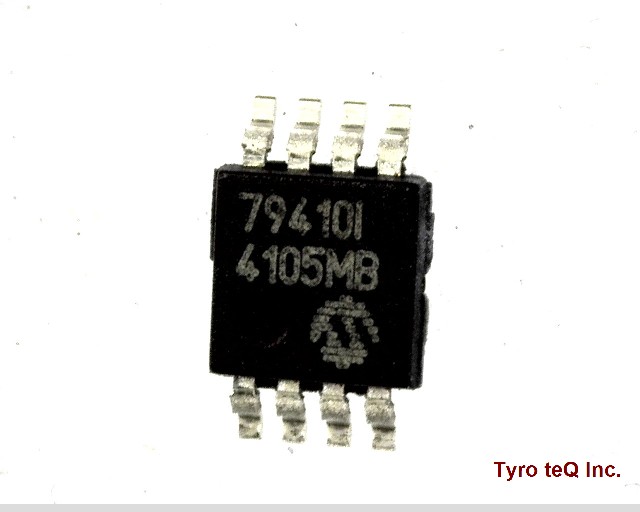

MCP79410-I/MS

Name: MCP79410-I/MS
Brand: MICROCHIP
SKU: 400010309-0000-0000-0000

MCP79410-I/MS - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

MCP79410-I/MS の詳細情報

型番	MCP79410-I/MS
メーカー	MICROCHIP
Additional Feature	ALSO OPERATES AT 100KHZ WITH 1.8 V NOMINAL
Clock Frequency-Max	0.032 MHz
External Data Bus Width	0
Information Access Method	SERIAL(I2C)
Interrupt Capability	Y
JESD-30 Code	S-PDSO-G8
JESD-609 Code	e3
Length	3 mm
Moisture Sensitivity Level	1
Number of Terminals	8
Number of Timers	1
On Chip Data RAM Width	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.19
Package Shape	SQUARE
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
RAM (words)	64
Screening Level	TS 16949
Seated Height-Max	1.1 mm
Supply Current-Max	3 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	1.8 V
Supply Voltage-Nom	2.5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time-Min	SECONDS
Time@Peak Reflow Temperature-Max (s)	40
Volatile	NO
Width	3 mm
uPs/uCs/Peripheral ICs Type	TIMER, REAL TIME CLOCK
