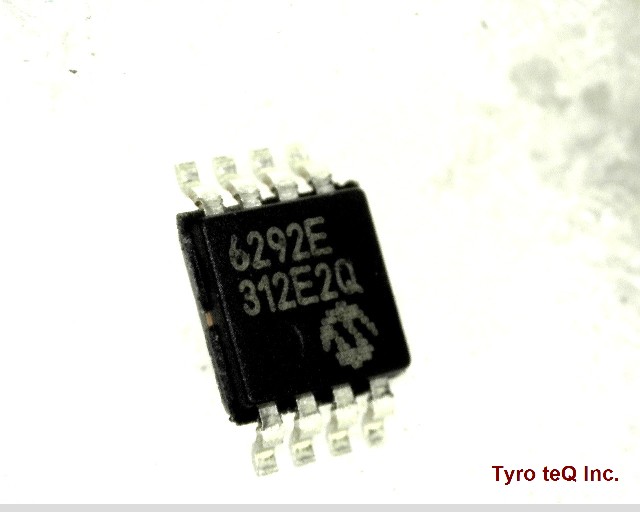

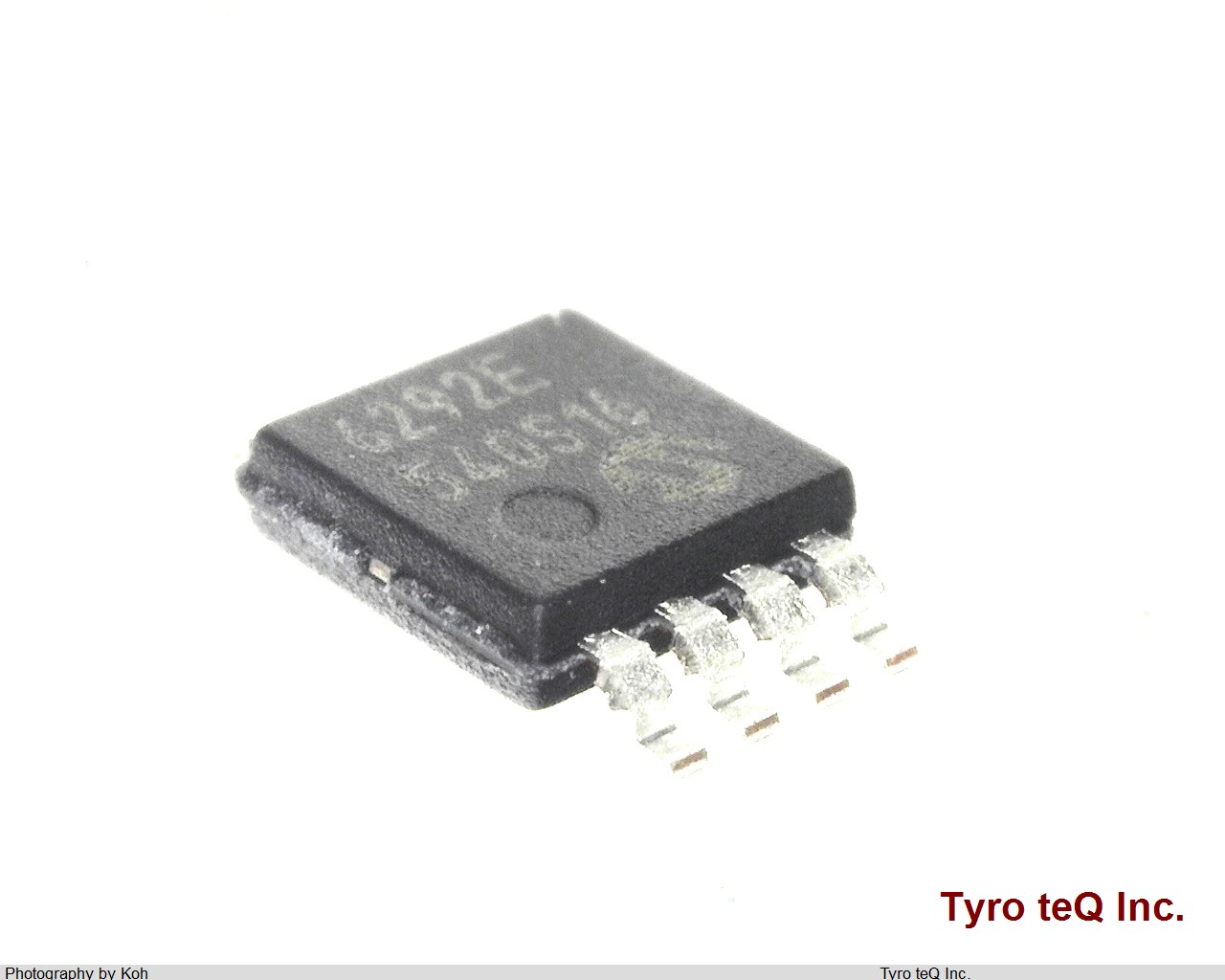

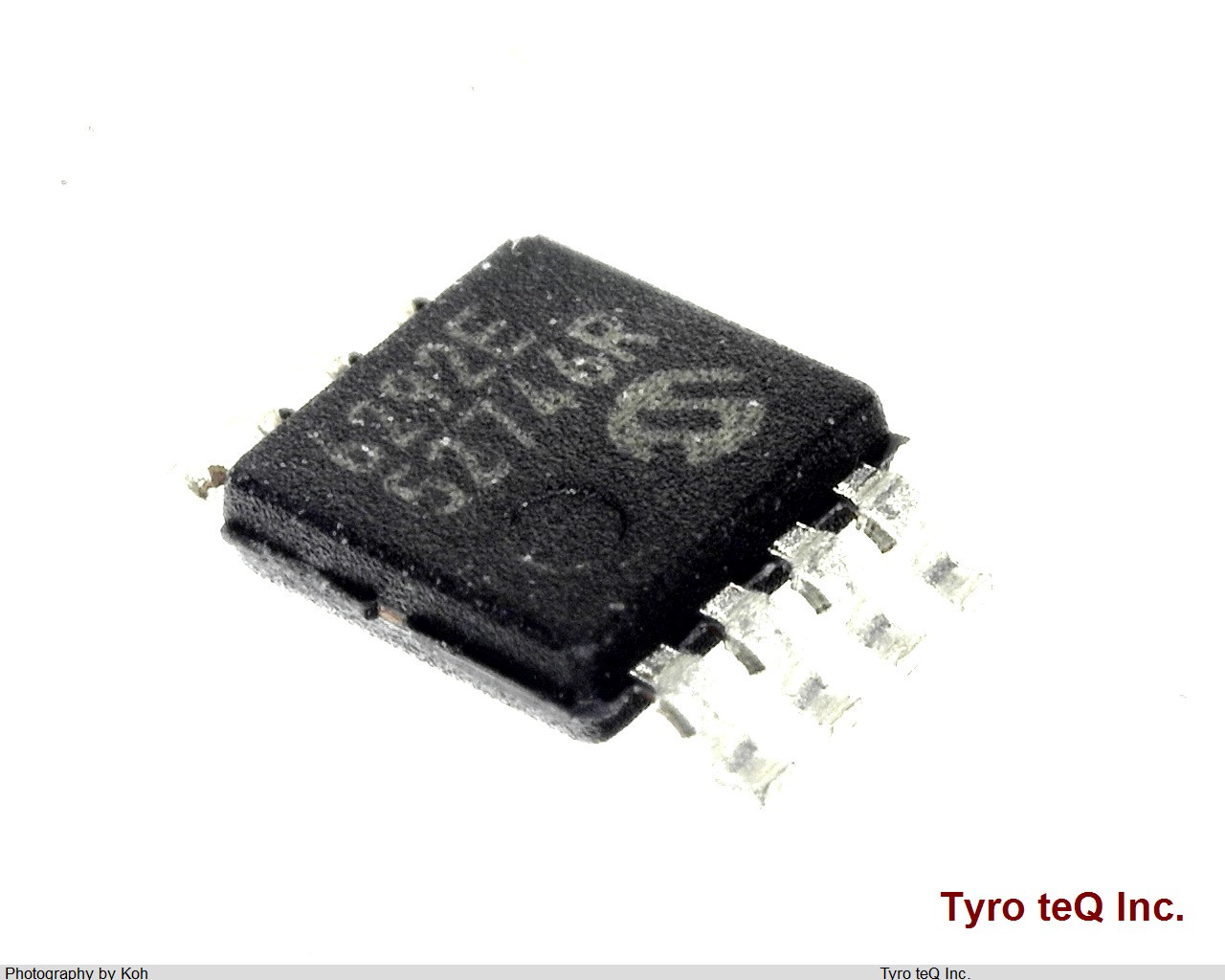

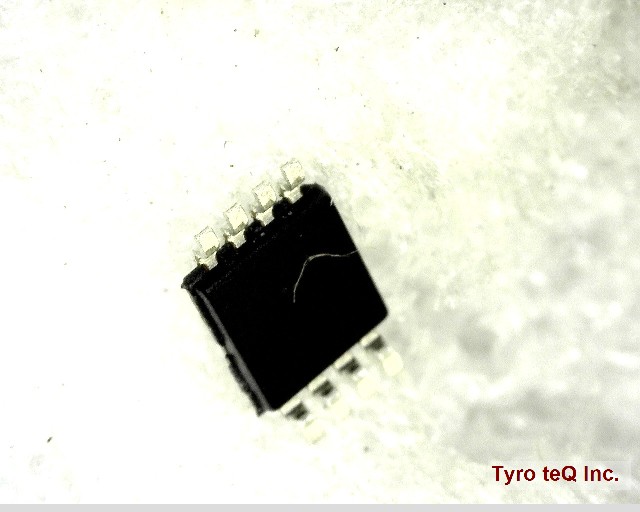

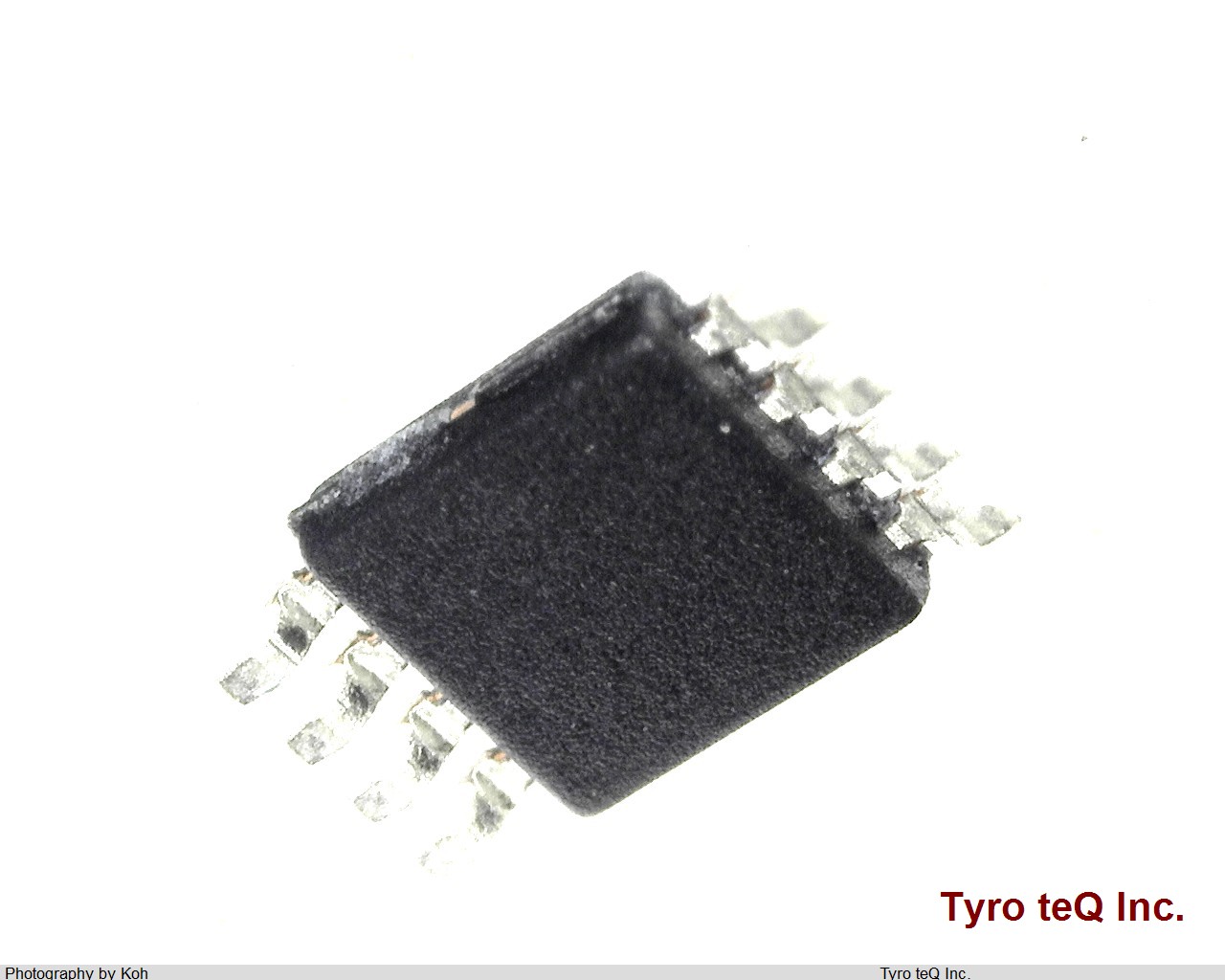

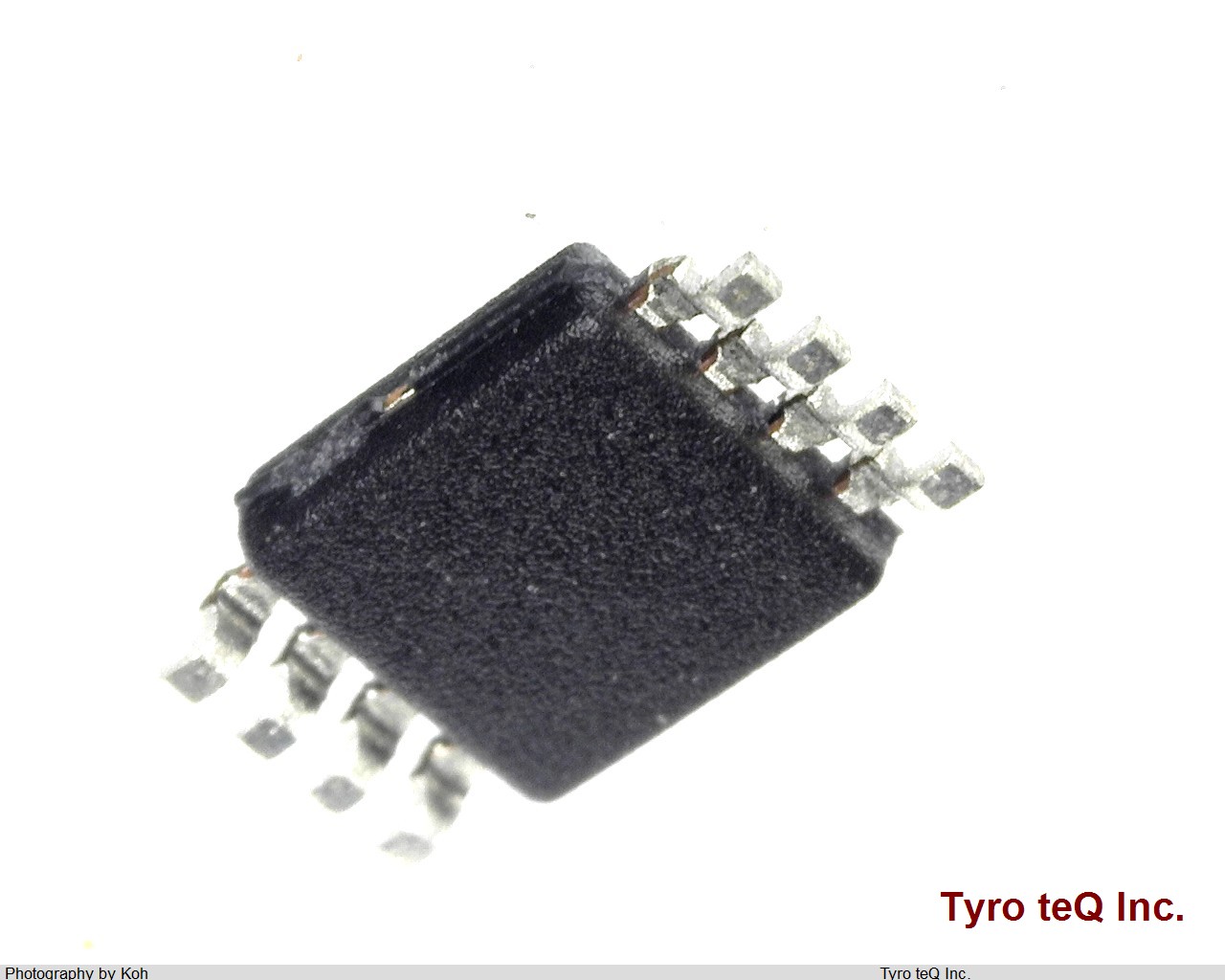

MCP6292-E/MS データシート

Name: MCP6292-E/MS
Brand: MICROCHIP
SKU: 230387293-0000-0000-0000

MCP6292-E/MS - MICROCHIP の商品詳細ページです。

No Image

２営業日以内に回答いたします

MCP6292-E/MS の詳細情報

型番	MCP6292-E/MS
メーカー	MICROCHIP
データシート
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	0.005 uA
Common-mode Reject Ratio-Min	65 dB
Common-mode Reject Ratio-Nom	80 dB
Frequency Compensation	YES
Input Offset Voltage-Max	5000 uV
JESD-30 Code	S-PDSO-G8
JESD-609 Code	e3
Length	3 mm
Low-Bias	YES
Low-Offset	NO
Micropower	NO
Moisture Sensitivity Level	1
Number of Functions	2
Number of Terminals	8
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP8,.19
Package Shape	SQUARE
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Packing Method	TUBE
Peak Reflow Temperature (Cel)	260
Power	NO
Power Supplies	2.5/5 V
Programmable Power	NO
Qualification Status	Not Qualified
Seated Height-Max	1.1 mm
Slew Rate-Nom	7 V/us
Sub Category	Operational Amplifier
Supply Current-Max	2.6 mA
Supply Voltage Limit-Max	7 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	AUTOMOTIVE
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	40
Unity Gain BW-Nom	10000 kHz
Voltage Gain-Min	31620
Wideband	NO
Width	3 mm
