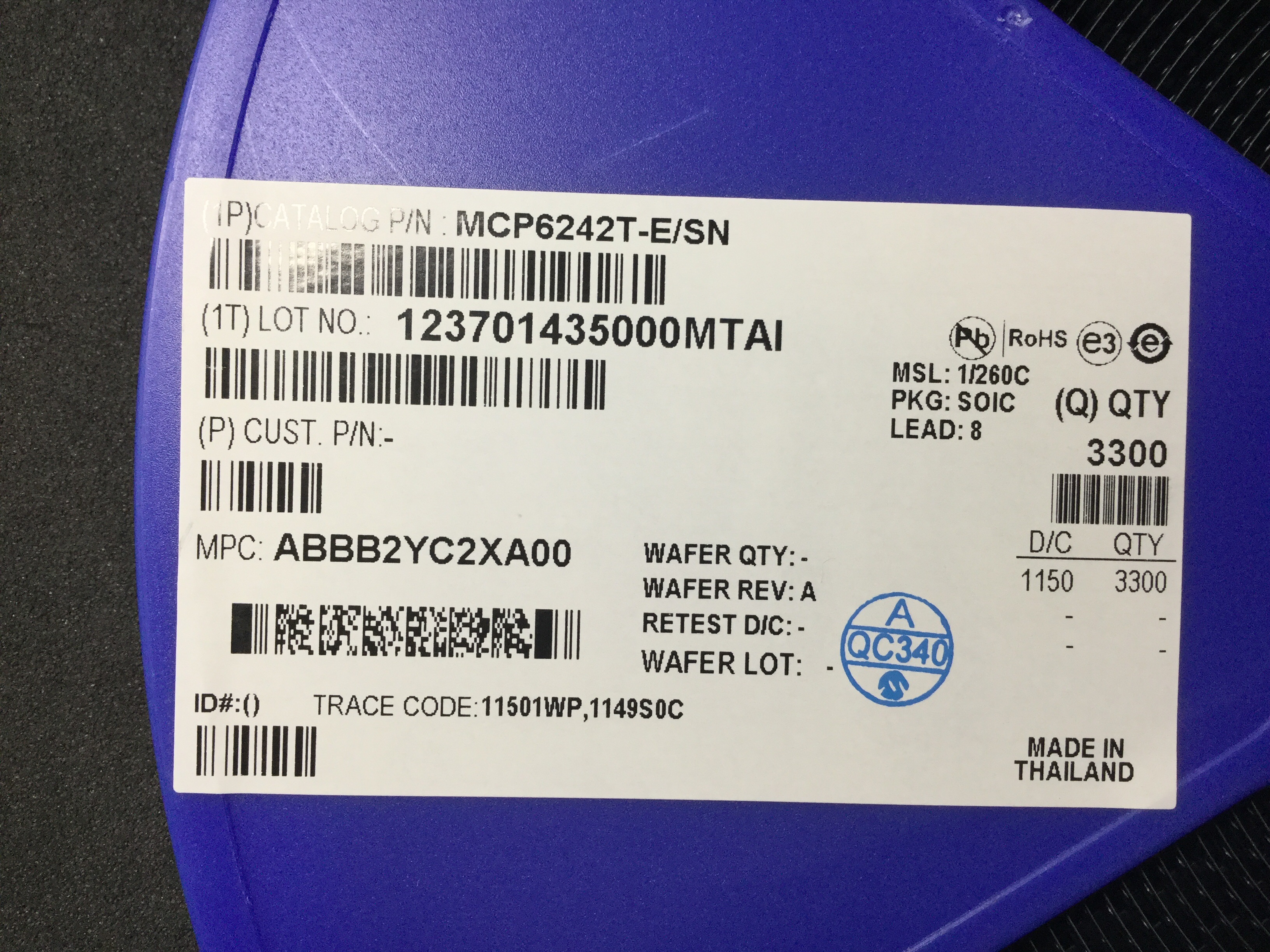

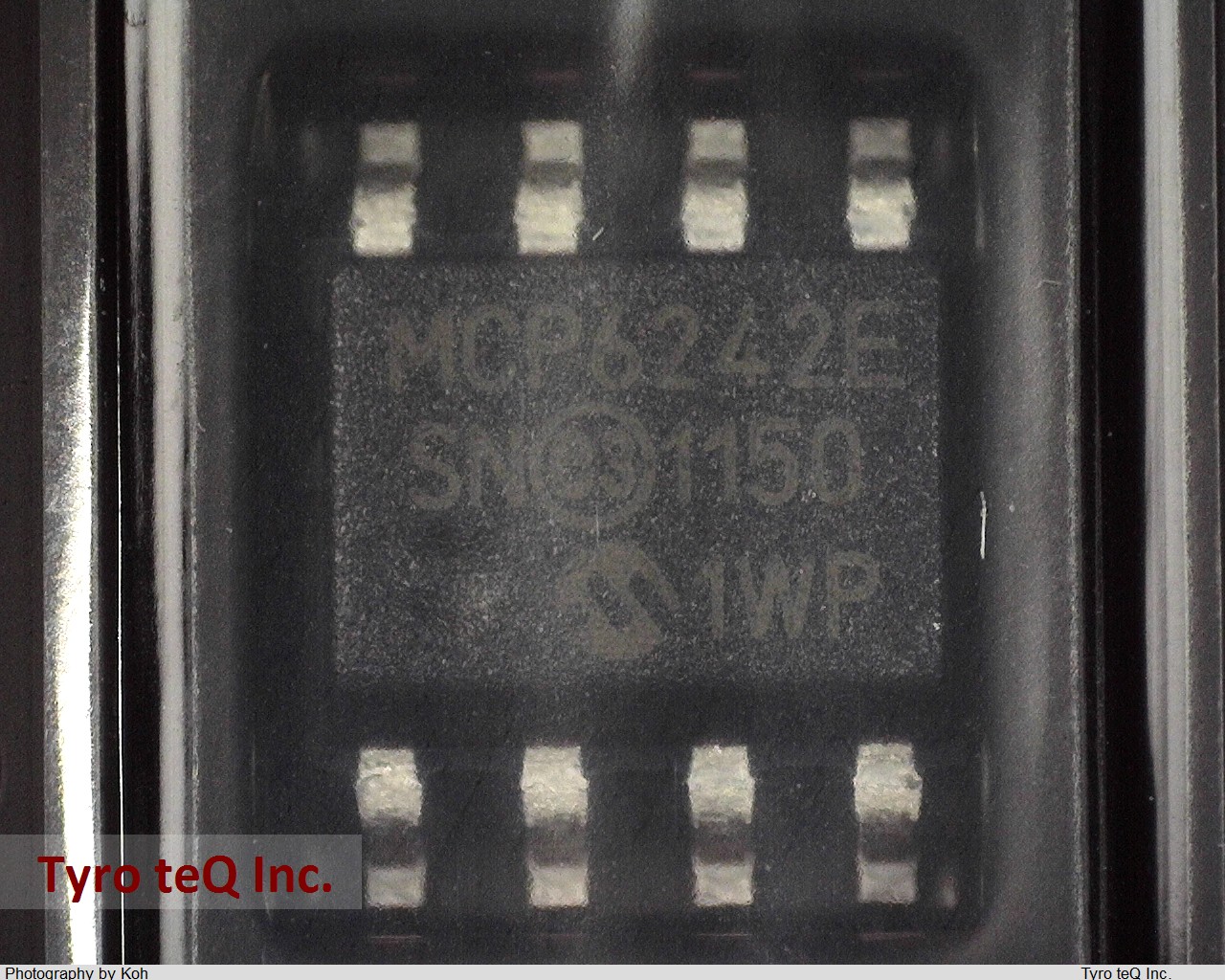

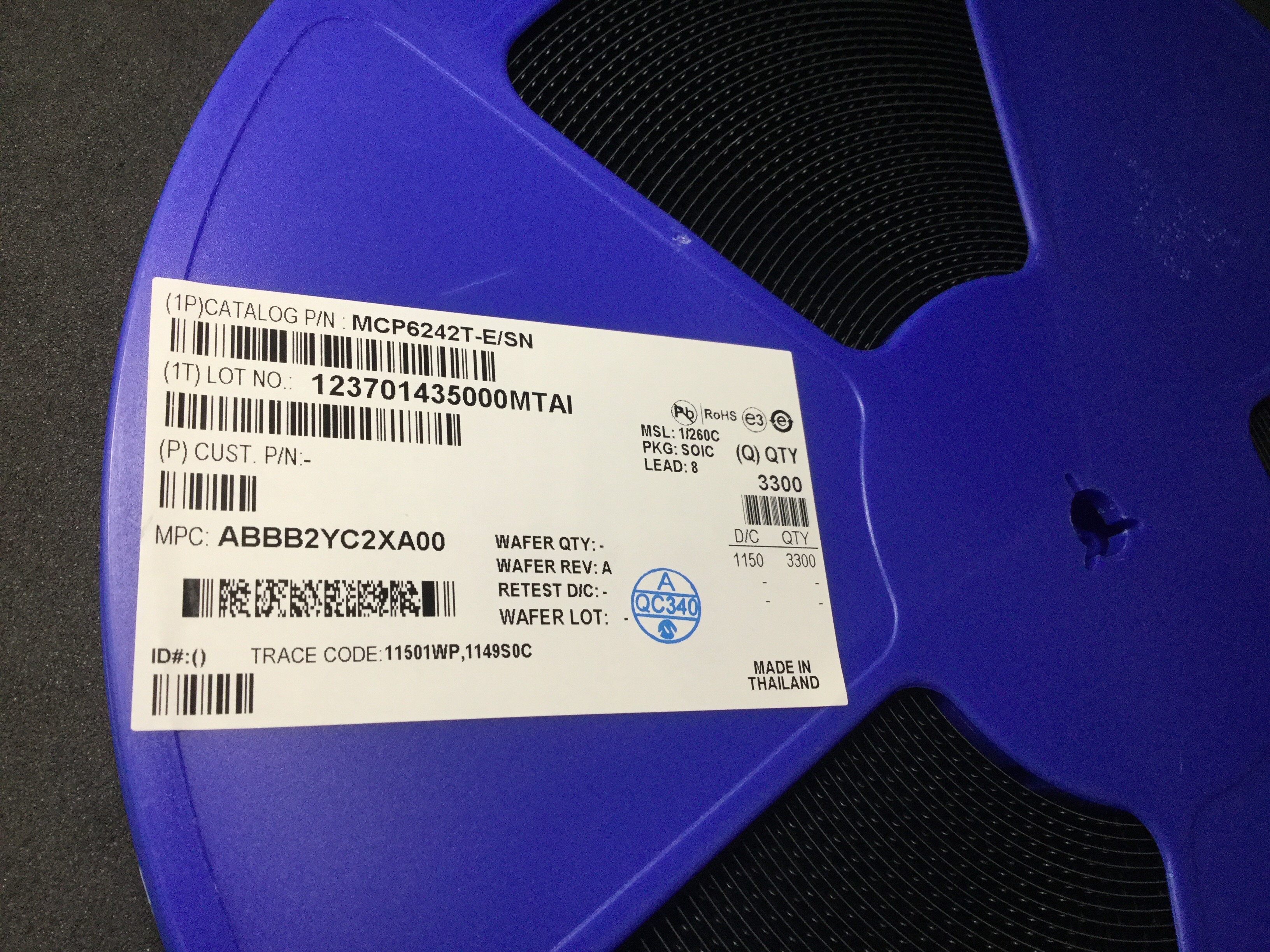

MCP6242T-E/SN

Name: MCP6242T-E/SN
Brand: MICROCHIP
SKU: 230761034-0000-0000-0000

MCP6242T-E/SN - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

MCP6242T-E/SN の詳細情報

型番	MCP6242T-E/SN
メーカー	MICROCHIP
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Common-mode Reject Ratio-Min	60 dB
Common-mode Reject Ratio-Nom	75 dB
Frequency Compensation	YES
Input Offset Voltage-Max	7000 uV
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e3
Length	4.9 mm
Low-Bias	YES
Low-Offset	NO
Micropower	YES
Moisture Sensitivity Level	1
Number of Functions	2
Number of Terminals	8
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	LSOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, LOW PROFILE Meter
Packing Method	TAPE AND REEL
Peak Reflow Temperature (Cel)	260
Power	NO
Power Supplies	2/5 V
Programmable Power	NO
Qualification Status	Not Qualified
Screening Level	TS 16949
Seated Height-Max	1.55 mm
Slew Rate-Nom	0.3 V/us
Sub Category	Operational Amplifier
Supply Current-Max	0.14 mA
Supply Voltage Limit-Max	7 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	AUTOMOTIVE
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Unity Gain BW-Nom	550 kHz
Voltage Gain-Min	31620
Wideband	NO
Width	3.91 mm
