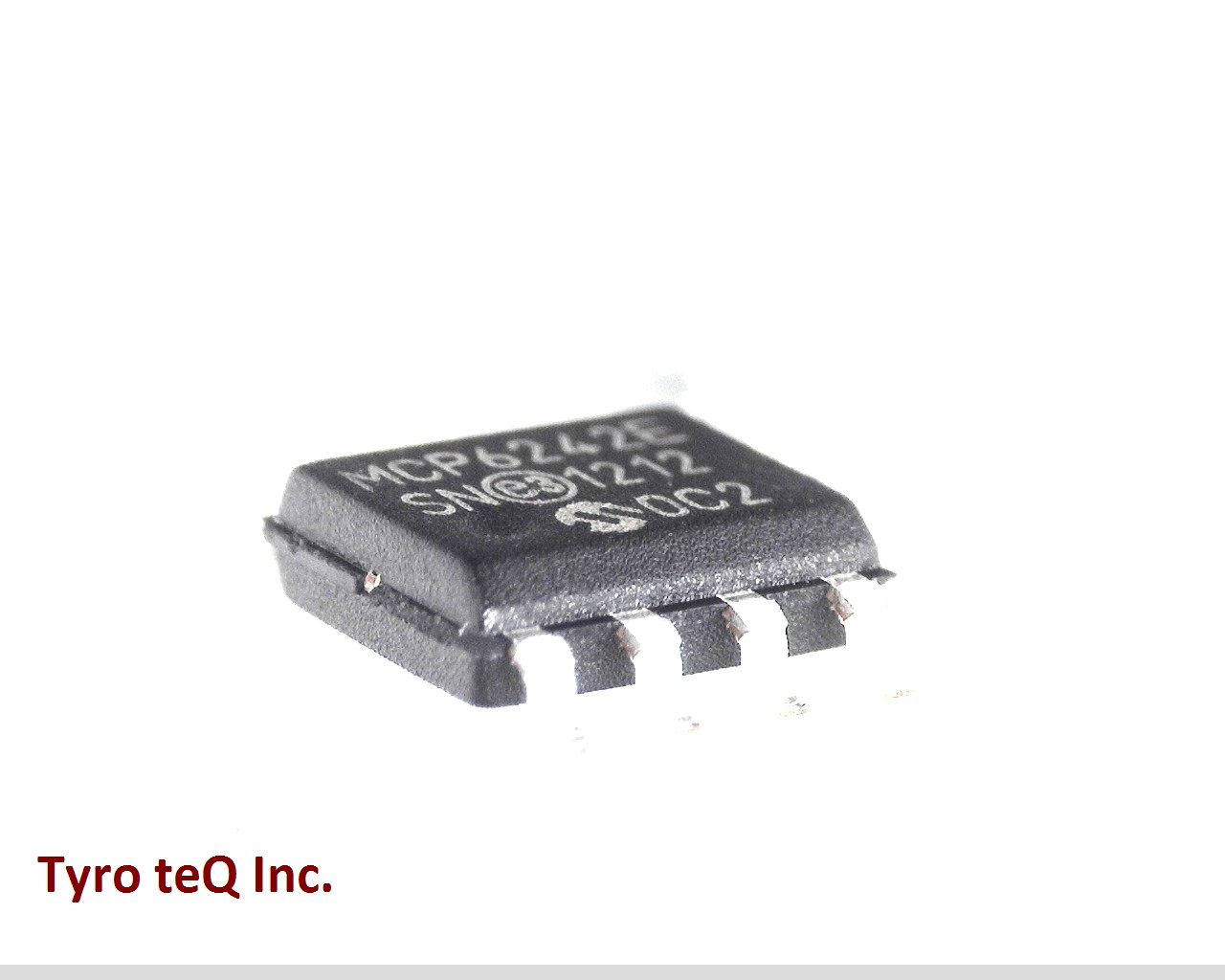

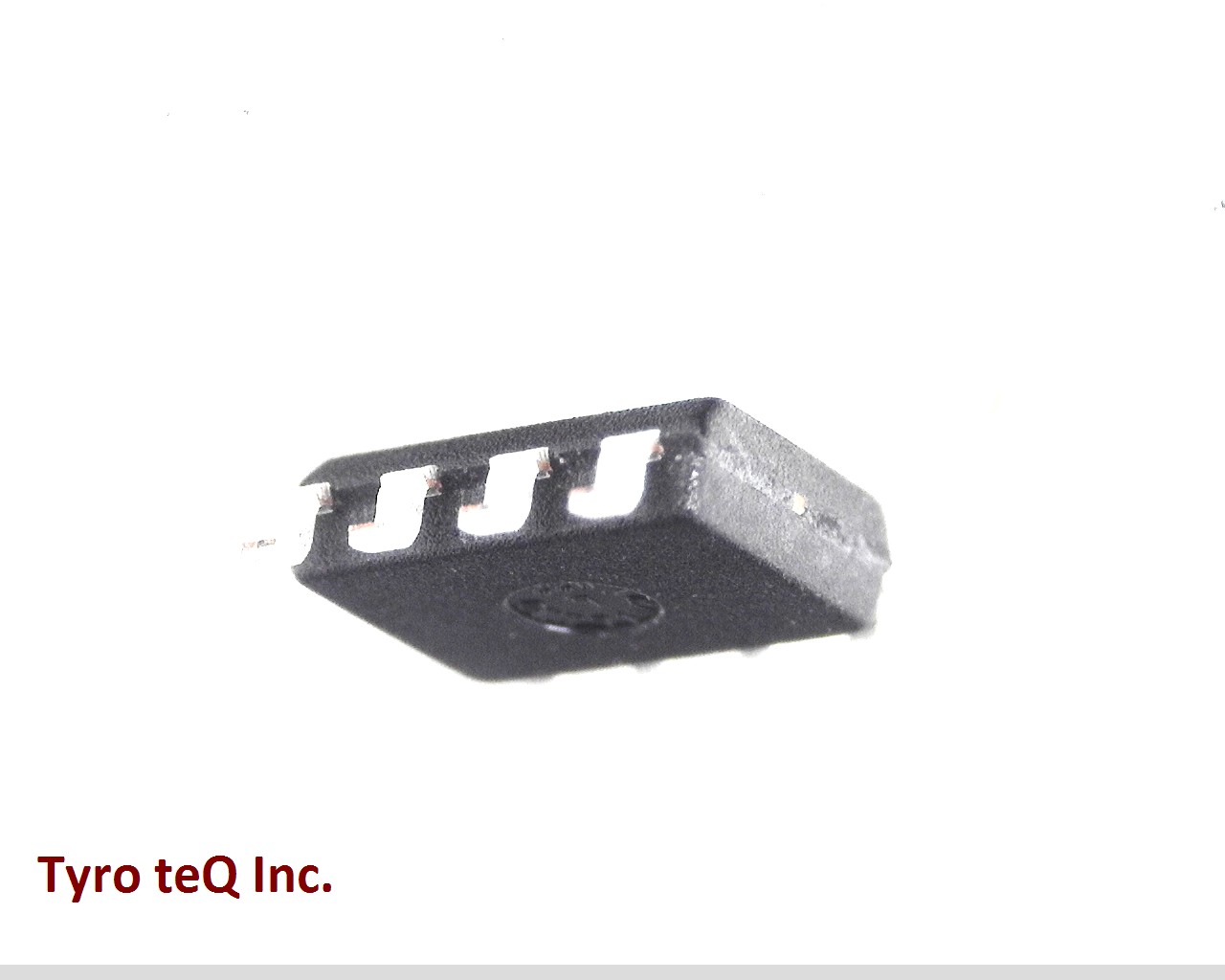

MCP6242-E/SN データシート

Name: MCP6242-E/SN
Brand: MICROCHIP
SKU: 230344480-0000-0000-0000

MCP6242-E/SN - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

MCP6242-E/SN の詳細情報

型番	MCP6242-E/SN
メーカー	MICROCHIP
データシート
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Common-mode Reject Ratio-Min	60 dB
Common-mode Reject Ratio-Nom	75 dB
Frequency Compensation	YES
Input Offset Voltage-Max	7000 uV
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e3
Length	4.9 mm
Low-Bias	YES
Low-Offset	NO
Micropower	YES
Moisture Sensitivity Level	1
Number of Functions	2
Number of Terminals	8
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	LSOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TUBE
Peak Reflow Temperature (Cel)	260
Power	NO
Power Supplies	2/5 V
Programmable Power	NO
Qualification Status	Not Qualified
Screening Level	TS 16949
Seated Height-Max	1.55 mm
Slew Rate-Nom	0.3 V/us
Sub Category	Operational Amplifier
Supply Current-Max	0.14 mA
Supply Voltage Limit-Max	7 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	AUTOMOTIVE
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Unity Gain BW-Nom	550 kHz
Voltage Gain-Min	31620
Wideband	NO
Width	3.91 mm
