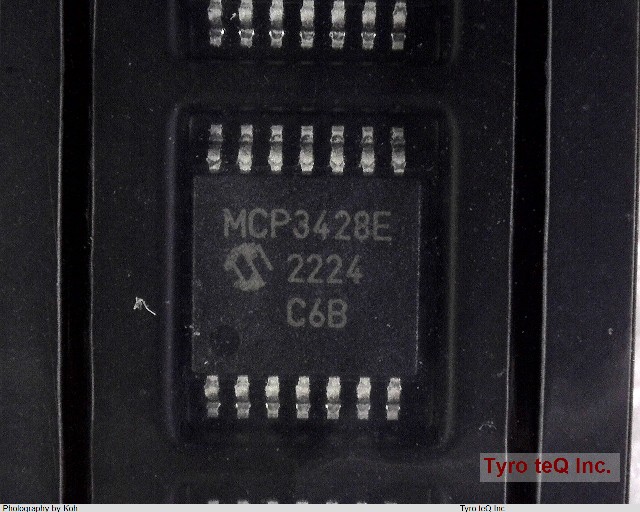

MCP3428-E/ST

Name: MCP3428-E/ST
Brand: MICROCHIP
SKU: 230726907-0000-0000-0000

MCP3428-E/ST - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

MCP3428-E/ST の詳細情報

型番	MCP3428-E/ST
メーカー	MICROCHIP
Analog Input Voltage-Max	2.048 V
Analog Input Voltage-Max (V)	2.048
Analog Input Voltage-Min	-2.048 V
Analog Input Voltage-Min (V)	-2.048
Converter Type	ADC, DELTA-SIGMA
DLA Qualification	Not Qualified
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G14
Length	5 mm
Length (mm)	5
Linearity Error-Max (EL)	0.001 %
Moisture Sensitivity Level	1
Number of Analog In Channels	4
Number of Bits	16
Number of Functions	1
Number of Terminals	14
Operating Temperature-Max	125 Cel
Operating Temperature-Max (Cel)	125
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	-40
Output Bit Code	2'S COMPLEMENT BINARY
Output Format	SERIAL
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP14,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Sample Rate	0.24 MHz
Sample Rate (MHz)	0.024
Screening Level	AEC-Q100; TS 16949
Screening Level / Reference Standard	TS 16949
Seated Height-Max	1.2 mm
Seated Height-Max (mm)	1.2
Supply Current-Max	0.18 mA
Supply Current-Max (mA)	0.18
Supply Voltage-Nom	5 V
Supply Voltage-Nom (V)	5
Surface Mount	YES
Temperature Grade	AUTOMOTIVE
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Pitch (mm)	0.65
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	40
Width	4.4 mm
Width (mm)	4.4
