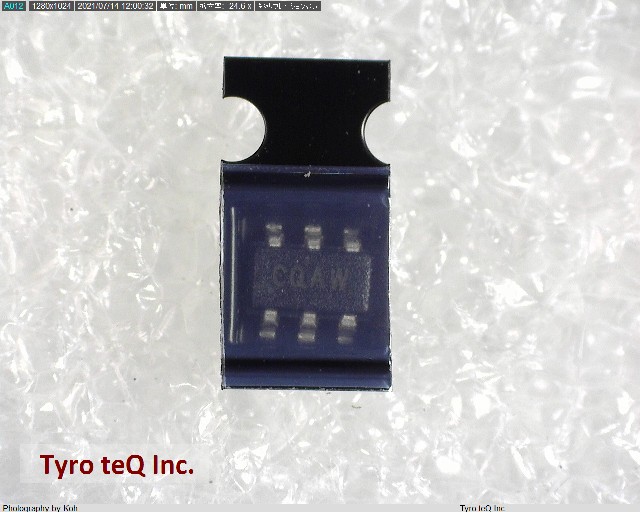

MCP3425A0T-E/CH データシート

Name: MCP3425A0T-E/CH
Brand: MICROCHIP
SKU: 230440770-0000-0000-0000

MCP3425A0T-E/CH - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

MCP3425A0T-E/CH の詳細情報

型番	MCP3425A0T-E/CH
メーカー	MICROCHIP
データシート
Analog Input Voltage-Max	2.048 V
Analog Input Voltage-Min	-2.048 V
Converter Type	ADC, DELTA-SIGMA
JESD-30 Code	R-PDSO-G6
JESD-609 Code	e3
Length	2.9 mm
Moisture Sensitivity Level	1
Number of Analog In Channels	1
Number of Bits	16
Number of Functions	1
Number of Terminals	6
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Output Bit Code	2'S COMPLEMENT BINARY
Output Format	SERIAL
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Equivalence Code	TSOP6,.11,37
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	5 V
Qualification Status	Not Qualified
Sample Rate	0.00024 MHz
Screening Level	TS 16949
Seated Height-Max	1.45 mm
Sub Category	Analog to Digital Converters
Supply Voltage-Nom	5 V
Surface Mount	YES
Temperature Grade	AUTOMOTIVE
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.95 mm
Terminal Position	DUAL
Width	1.55 mm
