MCP3302-CI/P データシート

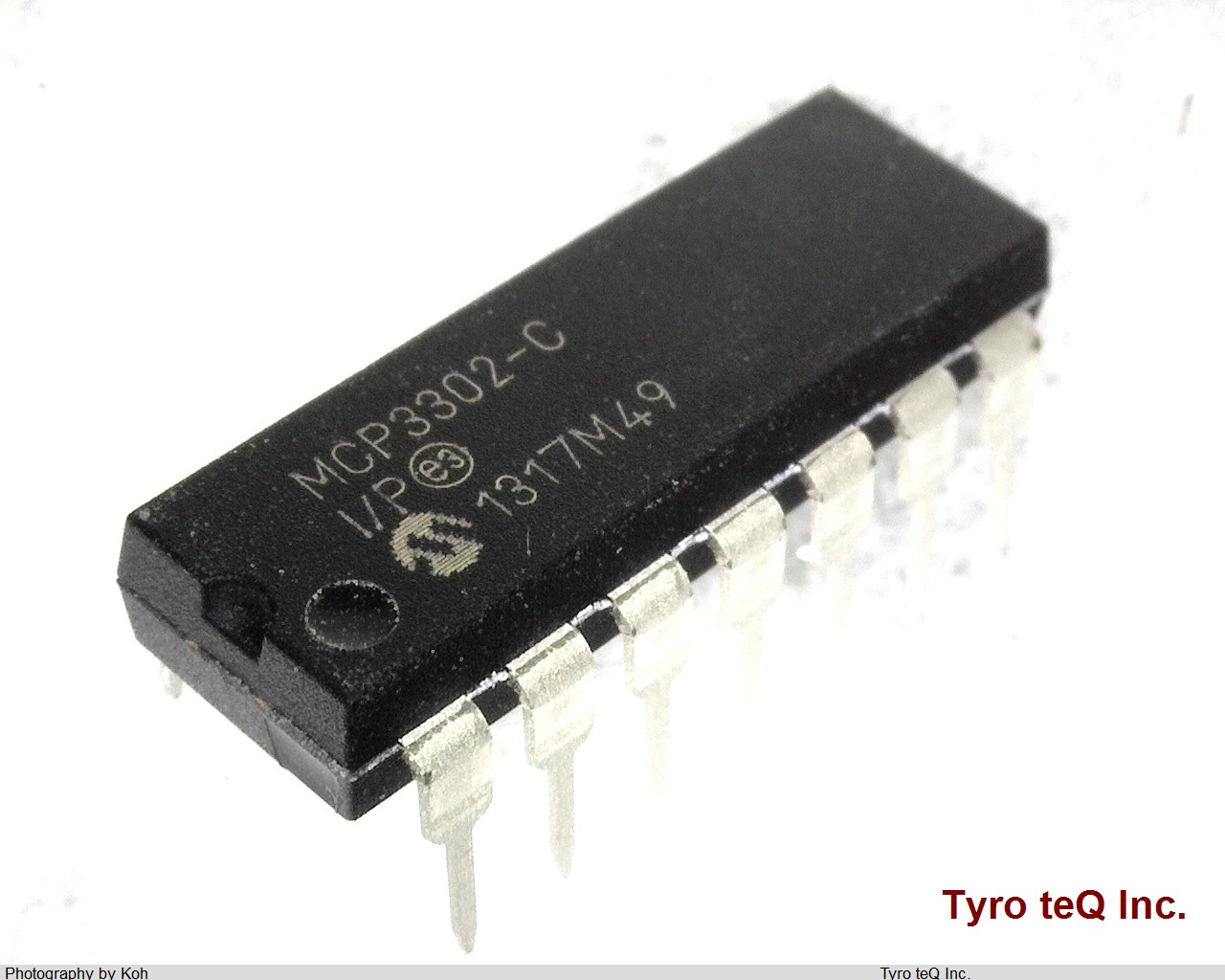

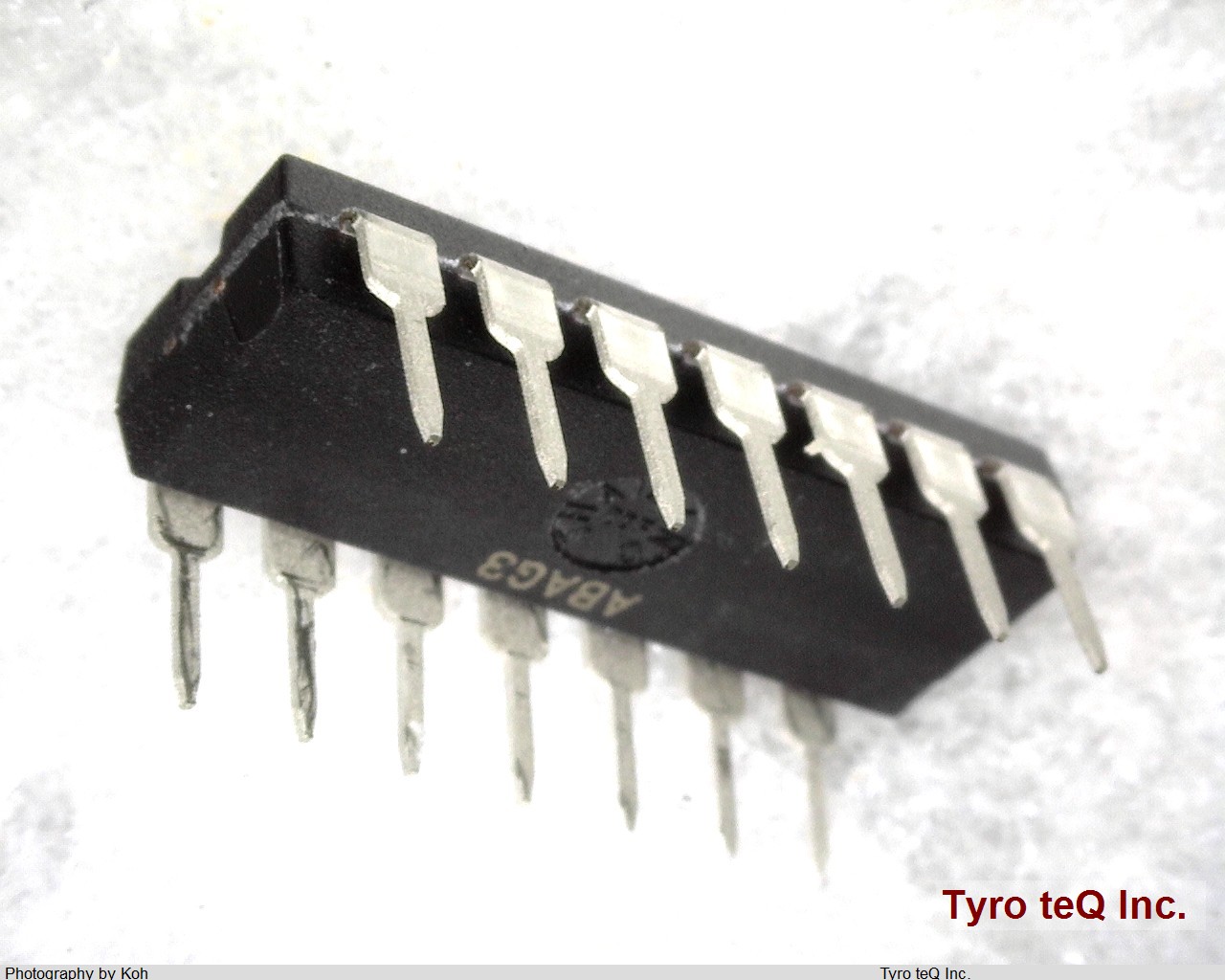

Name: MCP3302-CI/P
Brand: MICROCHIP
SKU: 230344166-0000-0000-0000

MCP3302-CI/P - MICROCHIP の商品詳細ページです。

No Image

２営業日以内に回答いたします

MCP3302-CI/P の詳細情報

型番	MCP3302-CI/P
メーカー	MICROCHIP
データシート
Analog Input Voltage-Max	5 V
Analog Input Voltage-Min	-5 V
Conversion Time-Max	6.1904 us
Converter Type	ADC, SUCCESSIVE APPROXIMATION
JESD-30 Code	R-PDIP-T14
JESD-609 Code	e3
Length	19.05 mm
Linearity Error-Max (EL)	0.0244 %
Number of Analog In Channels	4
Number of Bits	13
Number of Functions	1
Number of Terminals	14
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Bit Code	BINARY, 2'S COMPLEMENT BINARY
Output Format	SERIAL
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Power Supplies	3/5 V
Qualification Status	Not Qualified
Sample Rate	0.1 MHz
Sample-and-Hold/Track-and-Hold	SAMPLE
Screening Level	TS 16949
Seated Height-Max	5.334 mm
Sub Category	Analog to Digital Converters
Supply Voltage-Nom	5 V
Surface Mount	NO
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	7.62 mm
