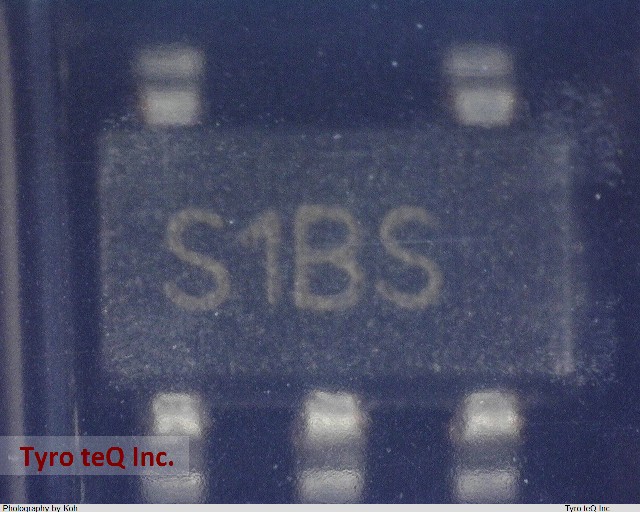

MCP3221A5T-I/OT データシート

Name: MCP3221A5T-I/OT
Brand: MICROCHIP
SKU: 230012656-0000-0000-0000

MCP3221A5T-I/OT - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

MCP3221A5T-I/OT の詳細情報

型番	MCP3221A5T-I/OT
メーカー	MICROCHIP
データシート
Analog Input Voltage-Max	5.8 V
Analog Input Voltage-Max (V)	5.8
Analog Input Voltage-Min	-0.3 V
Analog Input Voltage-Min (V)	-0.3
Converter Type	ADC, SUCCESSIVE APPROXIMATION
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G5
JESD-609 Code	e3
Length	2.95 mm
Length (mm)	2.95
Linearity Error-Max (EL)	0.0488 %
Linearity Error-Max (EL) (%)	0.0488
Moisture Sensitivity Level	1
Number of Analog In Channels	1
Number of Bits	12
Number of Functions	1
Number of Terminals	5
Operating Temperature-Max	85 Cel
Operating Temperature-Max (Cel)	85
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	-40
Output Bit Code	BINARY
Output Format	SERIAL
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Equivalence Code	TSOP5/6,.11,37
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	3/5 V
Qualification Status	Not Qualified
Sample Rate	0.0223 MHz
Sample Rate (MHz)	0.0223
Sample-and-Hold/Track-and-Hold	SAMPLE
Screening Level	TS 16949
Screening Level / Reference Standard	AEC-Q100; TS 16949
Seated Height-Max	1.45 mm
Seated Height-Max (mm)	1.45
Sub Category	Analog to Digital Converters
Supply Current-Max (mA)	0.25
Supply Voltage-Nom	5 V
Supply Voltage-Nom (V)	5
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.95 mm
Terminal Pitch (mm)	0.95
Terminal Position	DUAL
