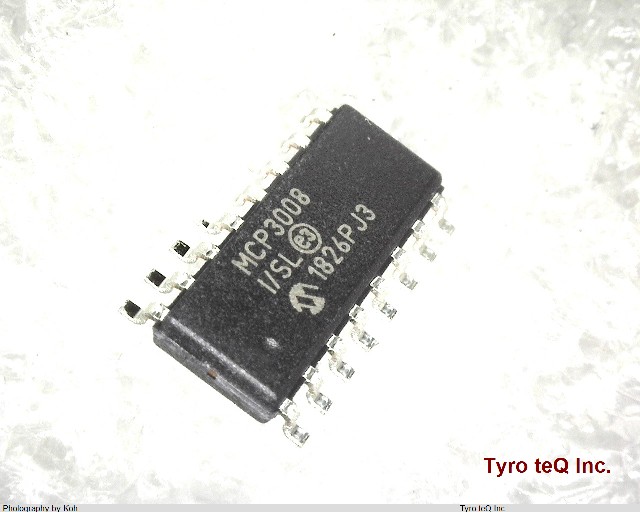

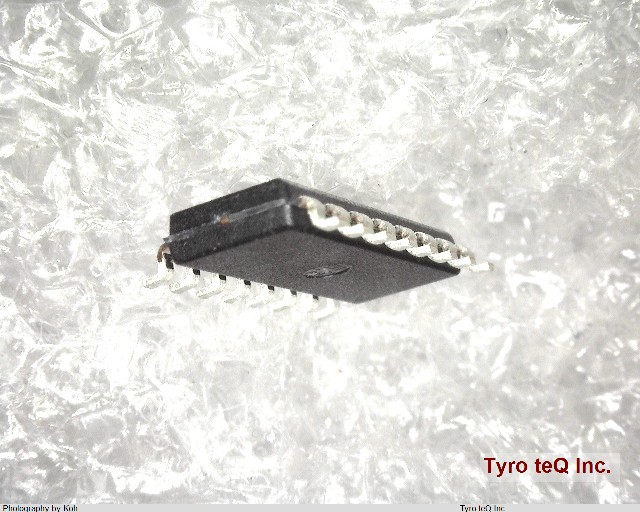

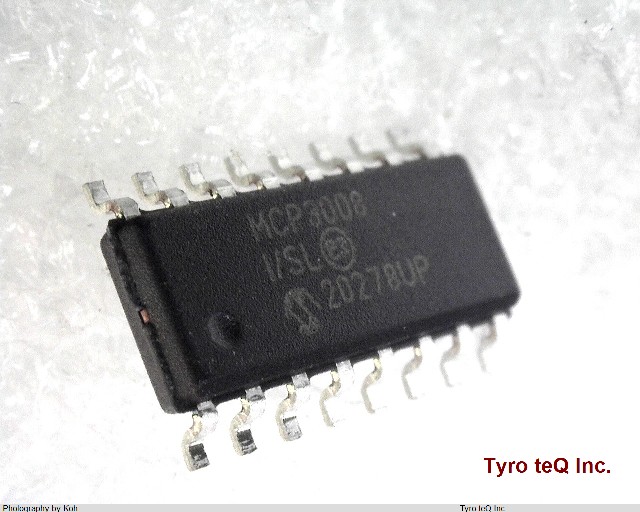

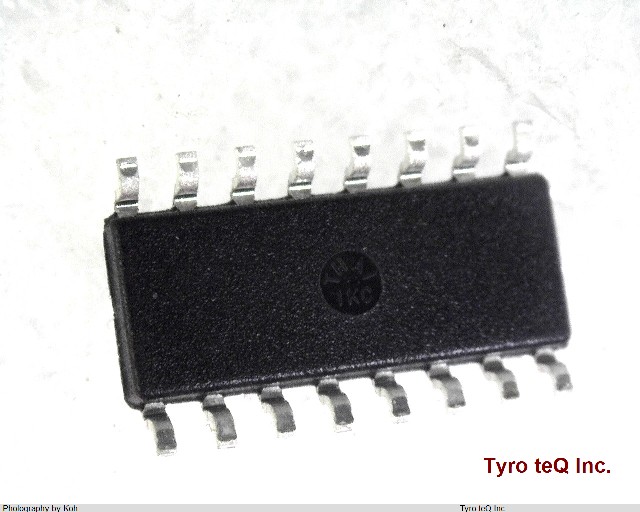

MCP3008-I/SL

Name: MCP3008-I/SL
Brand: MICROCHIP
SKU: 230755088-0000-0000-0000

MCP3008-I/SL - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

MCP3008-I/SL の詳細情報

型番	MCP3008-I/SL
メーカー	MICROCHIP
Analog Input Voltage-Max	5 V
Analog Input Voltage-Max (V)	5
Analog Input Voltage-Min	0 V
Analog Input Voltage-Min (V)	0
Conversion Time-Max	2.7778 us
Conversion Time-Max (us)	2.7778
Converter Type	ADC, SUCCESSIVE APPROXIMATION
DLA Qualification	Not Qualified
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G14
JESD-609 Code	e0
Length	9.9 mm
Length (mm)	9.9
Linearity Error-Max (EL)	0.0977 %
Linearity Error-Max (EL) (%)	0.0977
Moisture Sensitivity Level	1
Number of Analog In Channels	8
Number of Bits	10
Number of Functions	1
Number of Terminals	14
Operating Temperature-Max	85 Cel
Operating Temperature-Max (Cel)	85
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	-40
Output Bit Code	BINARY
Output Format	SERIAL
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP14,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	3/5 V
Qualification Status	Not Qualified
Sample Rate	0.2 MHz
Sample Rate (MHz)	0.2
Sample-and-Hold/Track-and-Hold	SAMPLE
Screening Level	TS 16949
Seated Height-Max	1.75 mm
Seated Height-Max (mm)	1.75
Sub Category	Analog to Digital Converters
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	40
