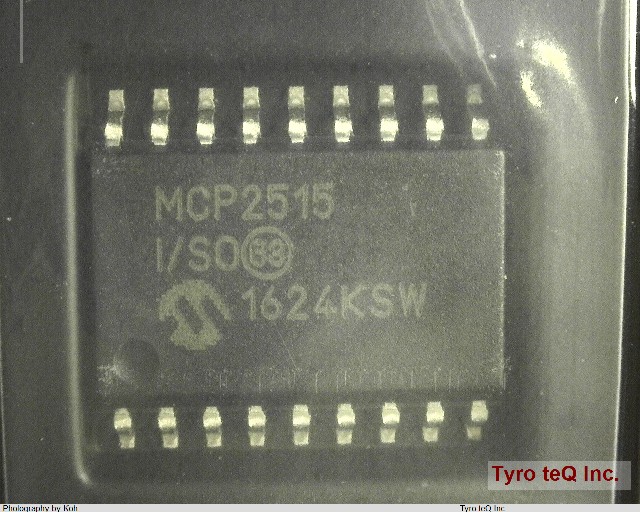

MCP2515T-I/SO データシート

Name: MCP2515T-I/SO
Brand: MICROCHIP
SKU: 230387369-0000-0000-0000

MCP2515T-I/SO - MICROCHIP の商品詳細ページです。

No Image

２営業日以内に回答いたします

MCP2515T-I/SO の詳細情報

型番	MCP2515T-I/SO
メーカー	MICROCHIP
データシート
Address Bus Width	0
Boundary Scan	NO
Bus Compatibility	SPI
Clock Frequency-Max	40 MHz
Communication Protocol	SYNC; BIT ;BYTE
Data Encoding/Decoding Method	NRZ
Data Transfer Rate-Max	0.125 MBps
External Data Bus Width	0
JESD-30 Code	R-PDSO-G18
JESD-609 Code	e3
Length	11.55 mm
Low Power Mode	YES
Moisture Sensitivity Level	2
Number of I/O Lines	0
Number of Serial I/Os	1
Number of Terminals	18
On Chip Data RAM Width	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP18,.4
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
RAM (words)	14
Screening Level	AEC-Q100
Seated Height-Max	2.65 mm
Supply Current-Max	10 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	40
Width	7.5 mm
uPs/uCs/Peripheral ICs Type	SERIAL IO/COMMUNICATION CONTROLLER, CAN
