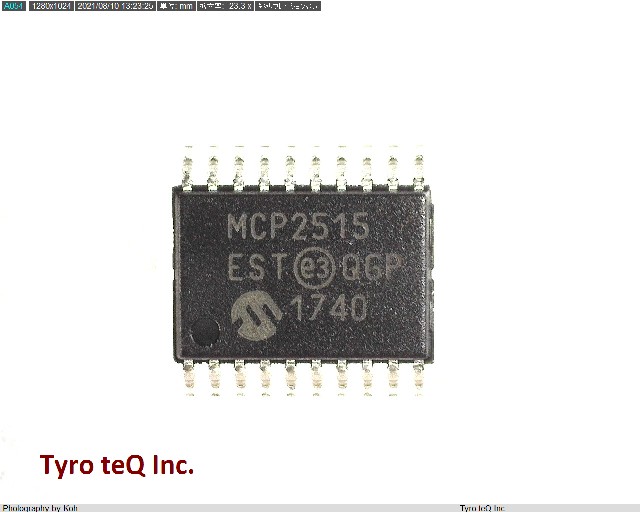

MCP2515-E/ST データシート

Name: MCP2515-E/ST
Brand: MICROCHIP
SKU: 230387518-0000-0000-0000

MCP2515-E/ST - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

MCP2515-E/ST の詳細情報

型番	MCP2515-E/ST
メーカー	MICROCHIP
データシート
Address Bus Width	0
Boundary Scan	NO
Bus Compatibility	CAN, SPI
Clock Frequency-Max	40 MHz
Communication Protocol	SYNC; BIT ;BYTE
Data Encoding/Decoding Method	NRZ
Data Transfer Rate-Max	0.125 MBps
External Data Bus Width	0
JESD-30 Code	R-PDSO-G20
JESD-609 Code	e3
Length	6.5 mm
Low Power Mode	YES
Moisture Sensitivity Level	1
Number of Serial I/Os	1
Number of Terminals	20
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP20,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Screening Level	AEC-Q100; TS 16949
Seated Height-Max	1.2 mm
Supply Current-Max	10 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	AUTOMOTIVE
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	40
Width	4.4 mm
uPs/uCs/Peripheral ICs Type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
