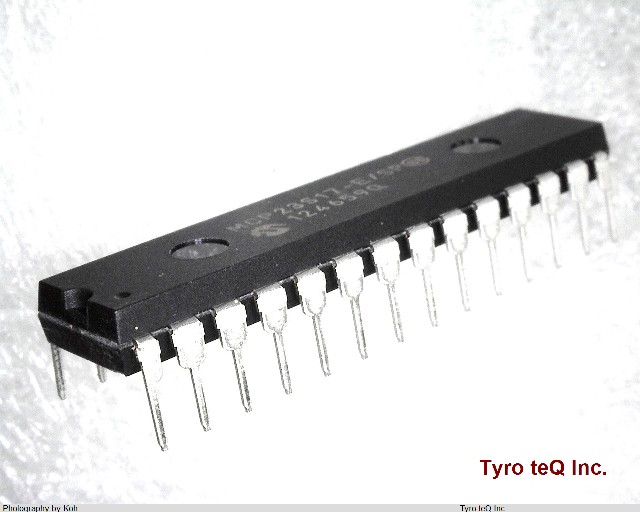

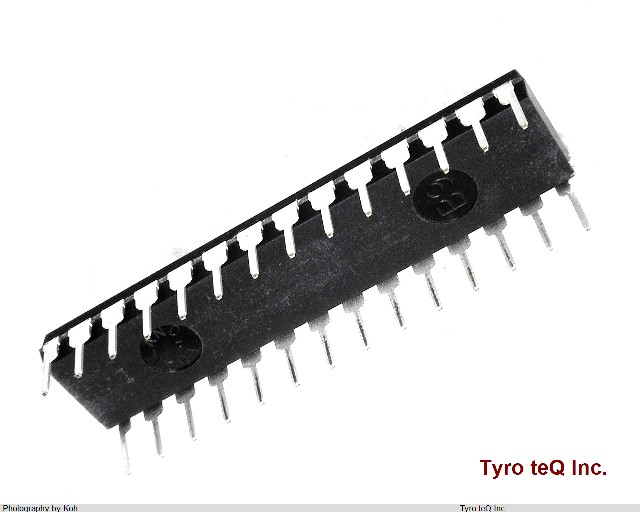

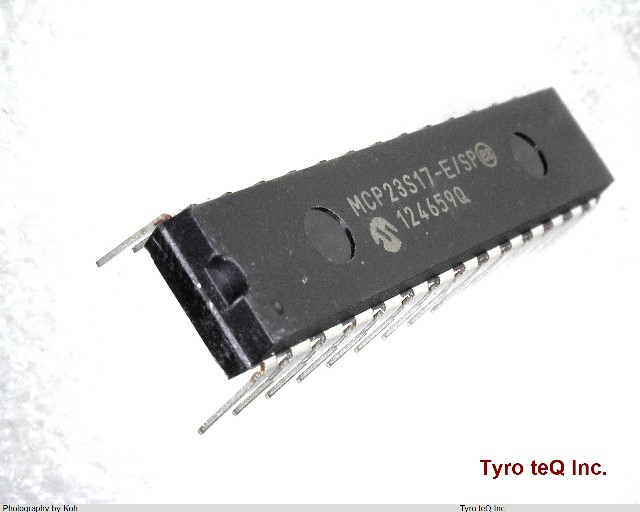

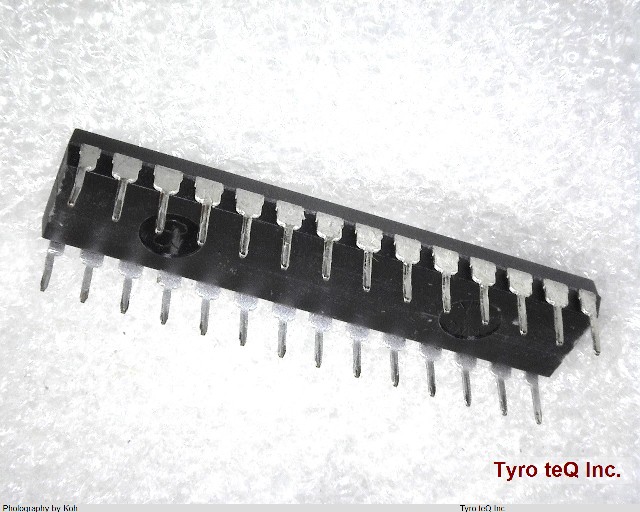

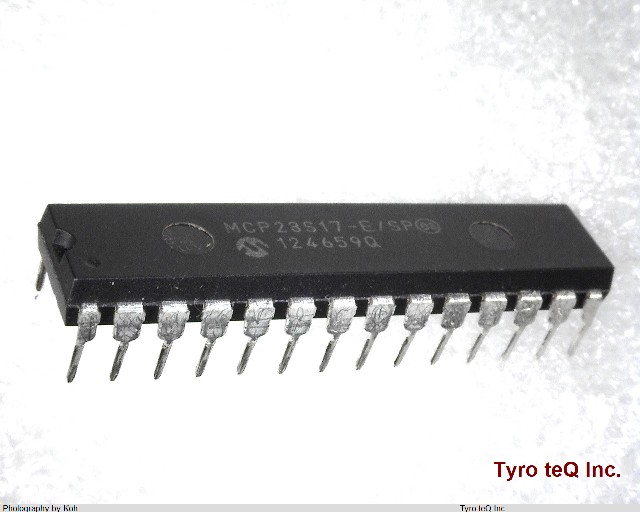

MCP23S17-E/SP データシート

Name: MCP23S17-E/SP
Brand: MICROCHIP
SKU: 230343506-0000-0000-0000

MCP23S17-E/SP - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

MCP23S17-E/SP の詳細情報

型番	MCP23S17-E/SP
メーカー	MICROCHIP
データシート
CPU Family	MCP23X17
Clock Frequency-Max (MHz)	10
DLA Qualification	Not Qualified
J-STD-609 Code	e3
JESD-30 Code	R-PDIP-T28
Length (mm)	34.671
Number of Bits	16
Number of I/O Lines	16
Number of Ports	2
Number of Terminals	28
Operating Temperature-Max (Cel)	125
Operating Temperature-Min (Cel)	-40
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP28,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Power Supplies	5 V
Screening Level / Reference Standard	TS 16949
Seated Height-Max (mm)	5.08
Sub Category	Parallel IO Port
Supply Current-Max (mA)	1
Supply Voltage-Max (V)	5.5
Supply Voltage-Min (V)	4.5
Supply Voltage-Nom (V)	5
Surface Mount	NO
Technology	CMOS
Temperature Grade	AUTOMOTIVE
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch (mm)	2.54
Terminal Position	DUAL
Width (mm)	7.62
uPs/uCs/Peripheral ICs Type	PARALLEL IO PORT, GENERAL PURPOSE
