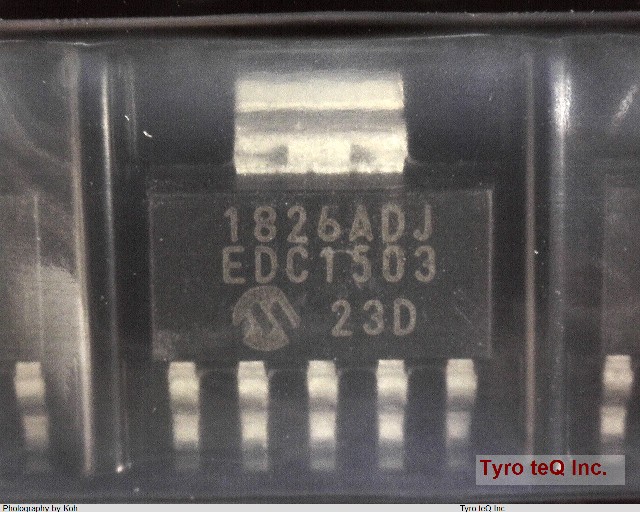

MCP1826T-ADJE/DC

Name: MCP1826T-ADJE/DC
Brand: MICROCHIP
SKU: 400039790-0000-0000-0000

MCP1826T-ADJE/DC - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

MCP1826T-ADJE/DC の詳細情報

型番	MCP1826T-ADJE/DC
メーカー	MICROCHIP
Adjustability	ADJUSTABLE
Dropout Voltage1-Max	0.4 V
Dropout Voltage1-Nom	0.25 V
JESD-30 Code	R-PDSO-G5
JESD-609 Code	e3
Length	6.5 mm
Line Regulation-Max (%/V)	0.2
Load Regulation-Max(%)	1 %
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	1
Number of Terminals	5
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	-40 Cel
Output Current1-Max	1 A
Output Voltage1-Max	5 V
Output Voltage1-Min	0.8 V
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOT-223-5
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Regulator Type	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max	1.8 mm
Sub Category	Other Regulators
Surface Mount	YES
Technology	CMOS
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	40
Width	3.5 mm
