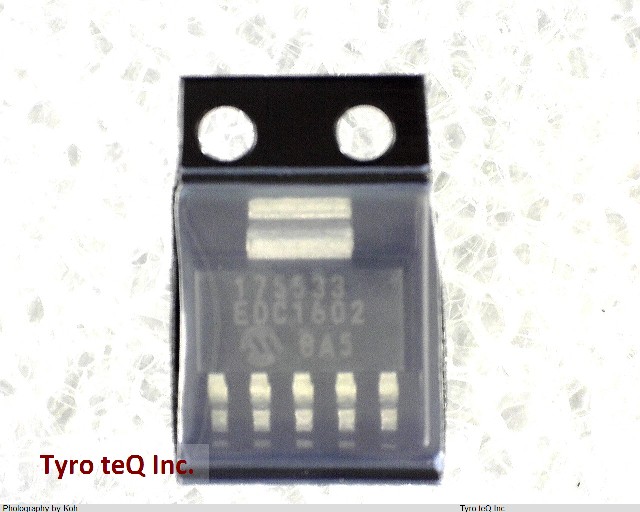

MCP1755T3302EDC

Name: MCP1755T3302EDC
Brand: MICROCHIP
SKU: 400047908-0000-0000-0000

MCP1755T3302EDC - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

MCP1755T3302EDC の詳細情報

型番	MCP1755T3302EDC
メーカー	MICROCHIP
Adjustability	FIXED
DLA Qualification	Not Qualified
Dropout Voltage1-Max (V)	0.5
Dropout Voltage1-Nom (V)	0.3
Input Voltage Absolute-Max (V)	17.6
Input Voltage-Max (V)	16
Input Voltage-Min (V)	3.6
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G5
Length (mm)	6.5
Line Regulation-Max (V)	0.02046
Load Regulation-Max (V)	0.0165
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	1
Number of Terminals	5
Operating Temperature TJ-Max (Cel)	125
Operating Temperature TJ-Min (Cel)	-40
Output Current1-Max (A)	0.3
Output Voltage1-Max (V)	3.366
Output Voltage1-Min (V)	3.234
Output Voltage1-Nom (V)	3.3
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOT-223-5
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Screening Level / Reference Standard	AEC-Q100
Seated Height-Max (mm)	1.8
Sub Category	Other Regulators
Surface Mount	YES
Technology	CMOS
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch (mm)	1.27
Terminal Position	DUAL
Voltage Tolerance-Max (%)	2
Width (mm)	3.5
