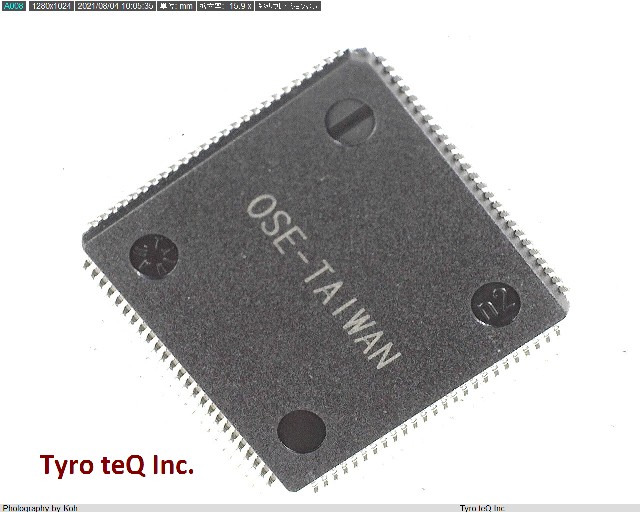

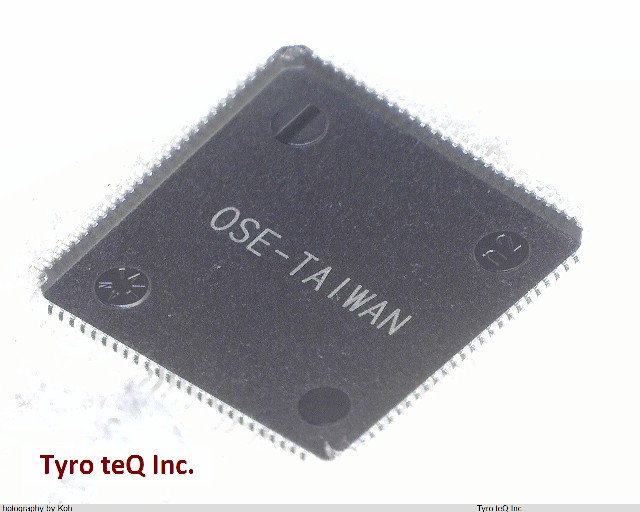

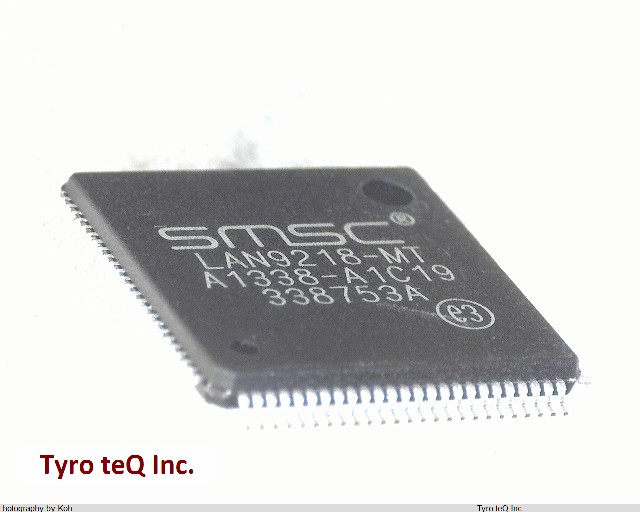

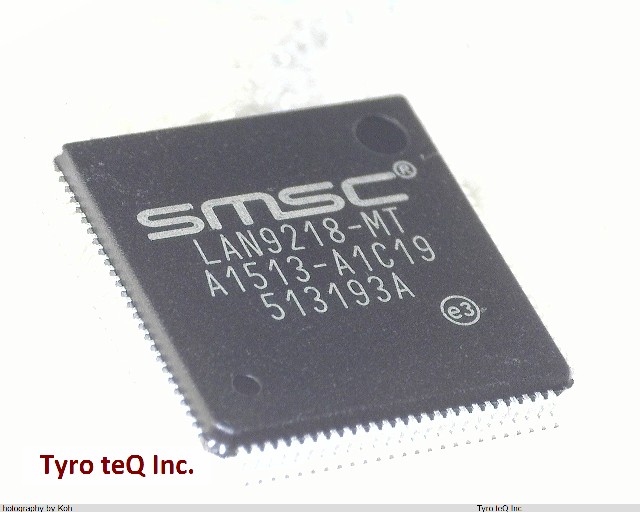

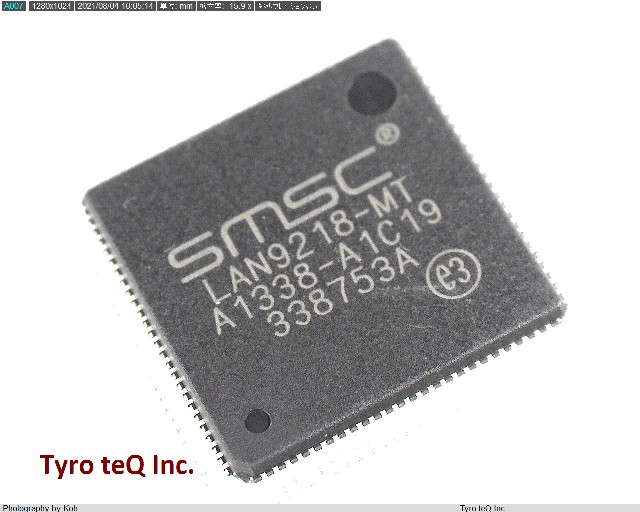

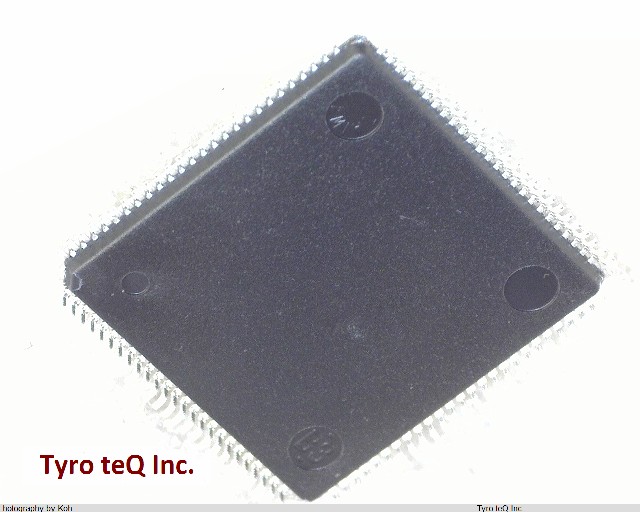

LAN9218-MT

Name: LAN9218-MT
Brand: MICROCHIP
SKU: 220208248-0000-0000-0000

LAN9218-MT - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

LAN9218-MT の詳細情報

型番	LAN9218-MT
メーカー	MICROCHIP
Address Bus Width	7
Boundary Scan	NO
Clock Frequency-Max	25 MHz
Clock Frequency-Max (MHz)	25
Communication Protocol	ASYNC, BIT
DLA Qualification	Not Qualified
Data Encoding/Decoding Method	NRZI; BIPH-LEVEL(MANCHESTER)
Data Transfer Rate-Max	12.5 MBps
Data Transfer Rate-Max (MBps)	12.5
External Data Bus Width	32
J-STD-609 Code	e2
JESD-30 Code	S-PQFP-G100
Length	14 mm
Length (mm)	14
Low Power Mode	YES
Number of Serial I/Os	1
Number of Terminals	100
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Package Body Material	PLASTIC/EPOXY
Package Code	LFQFP
Package Equivalence Code	QFP100,.63SQ
Package Shape	SQUARE
Package Style	FLATPACK, LOW PROFILE, FINE PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	3.3 V
Qualification Status	Not Qualified
Seated Height-Max	1.6 mm
Seated Height-Max (mm)	1.6
Sub Category	Serial IO/Communication Controllers
Supply Current-Max	40 mA
Supply Current-Max (mA)	40
Supply Voltage-Max	3.63 V
Supply Voltage-Min	2.97 V
Supply Voltage-Nom	1.8 V
Supply Voltage-Nom (V)	1.8
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Pitch (mm)	0.5
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	30
Width	14 mm
Width (mm)	14
uPs/uCs/Peripheral ICs Type	SERIAL IO/COMMUNICATION CONTROLLER, LAN
