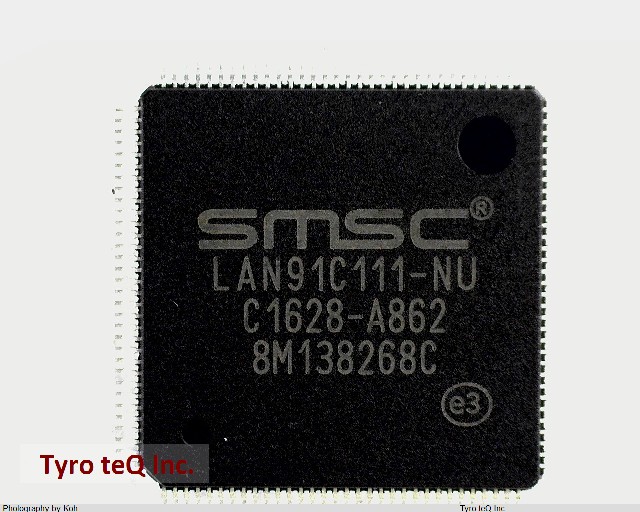

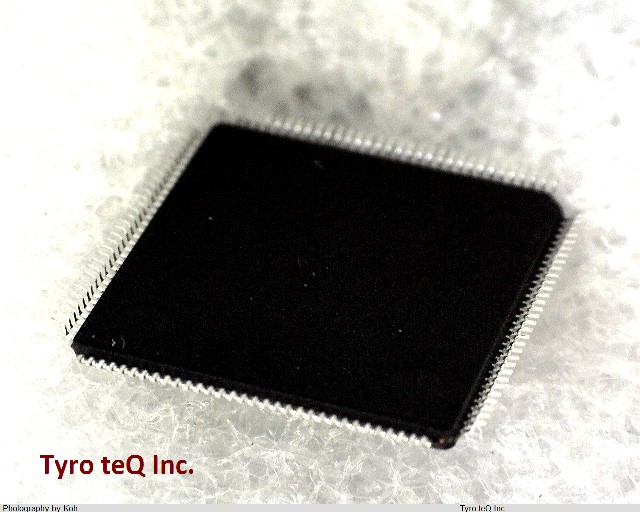

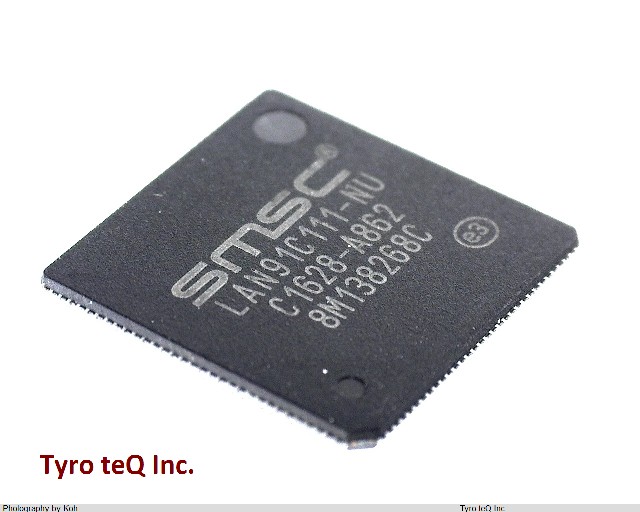

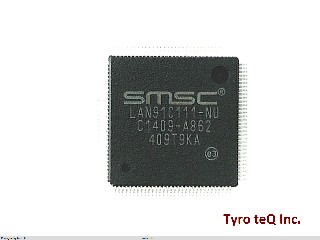

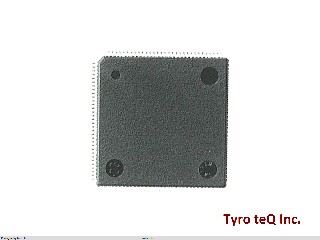

LAN91C111-NU

Name: LAN91C111-NU
Brand: MICROCHIP
SKU: 220208238-0000-0000-0000

LAN91C111-NU - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

LAN91C111-NU の詳細情報

型番	LAN91C111-NU
メーカー	MICROCHIP
Address Bus Width	15
Boundary Scan	NO
Bus Compatibility	680X0; 683XX
Clock Frequency-Max (MHz)	25
Communication Protocol	SYNC, BYTE; ETHERNET
Communication Standard	SYNC, BIT, BYTE, ETHERNET
DLA Qualification	Not Qualified
Data Encoding/Decoding Method	NRZ; BIPH-LEVEL(MANCHESTER)
Data Transfer Rate-Max	12.5 MBps
Data Transfer Rate-Max (MBps)	12.5
External Data Bus Width	32
J-STD-609 Code	e3
JESD-30 Code	S-PQFP-G128
Length	14 mm
Length (mm)	14
Low Power Mode	YES
Moisture Sensitivity Level	3
Number of Serial I/Os	4
Number of Terminals	128
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Package Body Material	PLASTIC/EPOXY
Package Code	TFQFP
Package Equivalence Code	QFP128,.63SQ,16
Package Shape	SQUARE
Package Style	FLATPACK, THIN PROFILE, FINE PITCH Meter
Peak Reflow Temperature (Cel)	260
Screening Level	TS 16949
Screening Level / Reference Standard	TS 16949
Seated Height-Max	1.2 mm
Seated Height-Max (mm)	1.2
Supply Current-Max	140 mA
Supply Current-Max (mA)	140
Supply Voltage-Max	3.63 V
Supply Voltage-Max (V)	3.63
Supply Voltage-Min	2.97 V
Supply Voltage-Min (V)	2.97
Supply Voltage-Nom	3.3 V
Supply Voltage-Nom (V)	3.3
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.4 mm
Terminal Pitch (mm)	0.4
Terminal Position	QUAD
uPs/uCs/Peripheral ICs Type	SERIAL IO/COMMUNICATION CONTROLLER, LAN
