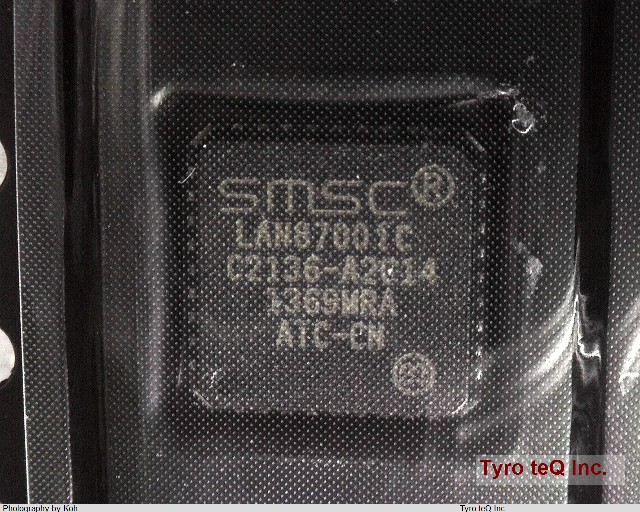

LAN8700IC-AEZG

Name: LAN8700IC-AEZG
Brand: MICROCHIP
SKU: 220208227-0000-0000-0000

LAN8700IC-AEZG - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

LAN8700IC-AEZG の詳細情報

型番	LAN8700IC-AEZG
メーカー	MICROCHIP
Additional Feature	IT ALSO HAS IEEE802.3AB NETWORK PROTOCOL
Address Bus Width	0
Boundary Scan	NO
Clock Frequency-Max	25 MHz
Clock Frequency-Max (MHz)	25
Communication Protocol	ASYNC, BIT
Communication Standard	ASYNC, BIT; SYNC, BYTE
Data Encoding/Decoding Method	NRZI; BIPH-LEVEL(MANCHESTER)
Data Transfer Rate-Max	12.5 MBps
Data Transfer Rate-Max (MBps)	12.5
External Data Bus Width	0
J-STD-609 Code	e3
JESD-30 Code	S-PQCC-N36
JESD-609 Code	e3
Length	6 mm
Length (mm)	6
Low Power Mode	YES
Moisture Sensitivity Level	1
Number of Serial I/Os	4
Number of Terminals	36
Operating Temperature-Max	85 Cel
Operating Temperature-Max (Cel)	85
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	-40
Package Body Material	PLASTIC/EPOXY
Package Code	HVQCCN
Package Equivalence Code	LCC36,.24SQ,20
Package Shape	SQUARE
Package Style	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Peak Reflow Temperature (Cel)	225
Screening Level	TS 16949
Screening Level / Reference Standard	TS 16949
Seated Height-Max	1 mm
Seated Height-Max (mm)	1
Supply Current-Max	41.3 mA
Supply Current-Max (mA)	41.3
Supply Voltage-Max	3.6 V
Supply Voltage-Min	3 V
Supply Voltage-Nom	1.8 V
Supply Voltage-Nom (V)	1.8
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	NO LEAD
Terminal Pitch	0.5 mm
Terminal Pitch (mm)	0.5
Terminal Position	QUAD
Width	6 mm
uPs/uCs/Peripheral ICs Type	SERIAL IO/COMMUNICATION CONTROLLER, LAN
