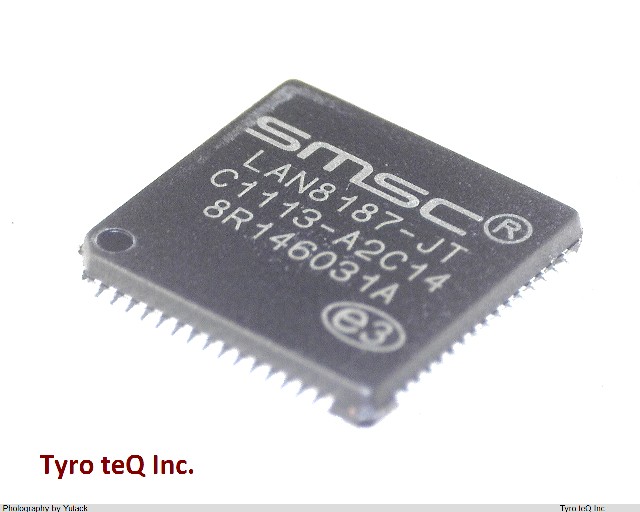

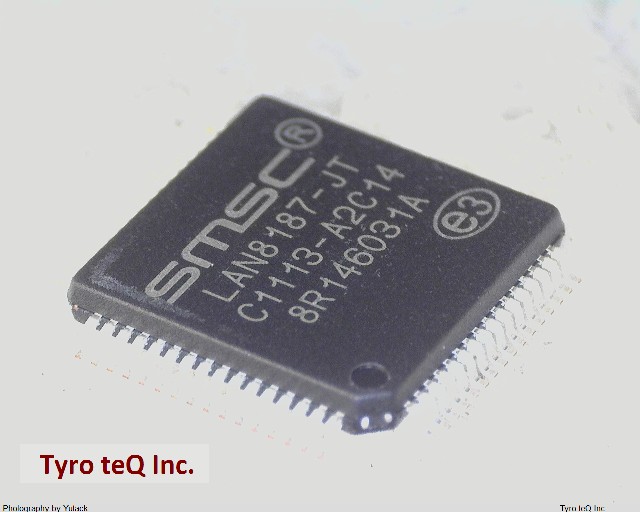

LAN8187-JT

Name: LAN8187-JT
Brand: MICROCHIP
SKU: 220208224-0000-0000-0000

LAN8187-JT - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

LAN8187-JT の詳細情報

型番	LAN8187-JT
メーカー	MICROCHIP
Address Bus Width	0
Boundary Scan	NO
Clock Frequency-Max	25 MHz
Clock Frequency-Max (MHz)	25
Communication Protocol	SYNC, BYTE
Communication Standard	ASYNC, BIT; SYNC, BYTE
DLA Qualification	Not Qualified
Data Encoding/Decoding Method	NRZI; BIPH-LEVEL(MANCHESTER)
Data Transfer Rate-Max	12.5 MBps
Data Transfer Rate-Max (MBps)	12.5
External Data Bus Width	0
J-STD-609 Code	e3
JESD-30 Code	S-PQFP-G64
Length	10 mm
Length (mm)	10
Low Power Mode	YES
Number of Serial I/Os	4
Number of Terminals	64
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Package Body Material	PLASTIC/EPOXY
Package Code	LFQFP
Package Shape	SQUARE
Package Style	FLATPACK, LOW PROFILE, FINE PITCH Meter
Qualification Status	Not Qualified
Screening Level / Reference Standard	TS 16949
Seated Height-Max	1.6 mm
Seated Height-Max (mm)	1.6
Supply Current-Max (mA)	81.6
Supply Voltage-Max	3.6 V
Supply Voltage-Min	3 V
Supply Voltage-Nom	3.3 V
Supply Voltage-Nom (V)	1.8
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Pitch (mm)	0.5
Terminal Position	QUAD
Width	10 mm
Width (mm)	10
uPs/uCs/Peripheral ICs Type	SERIAL IO/COMMUNICATION CONTROLLER, LAN
