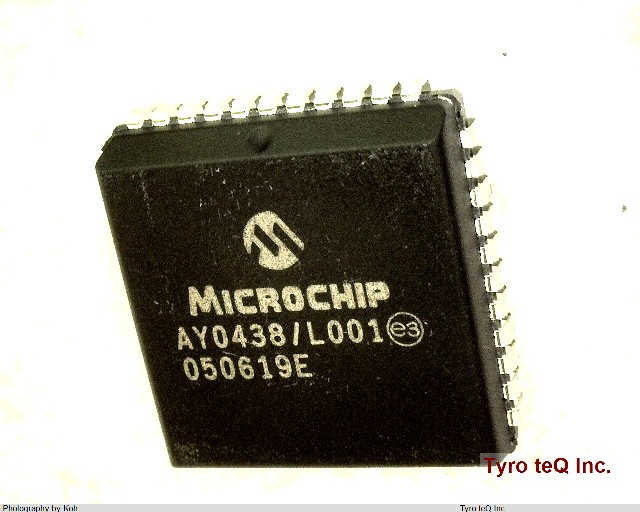

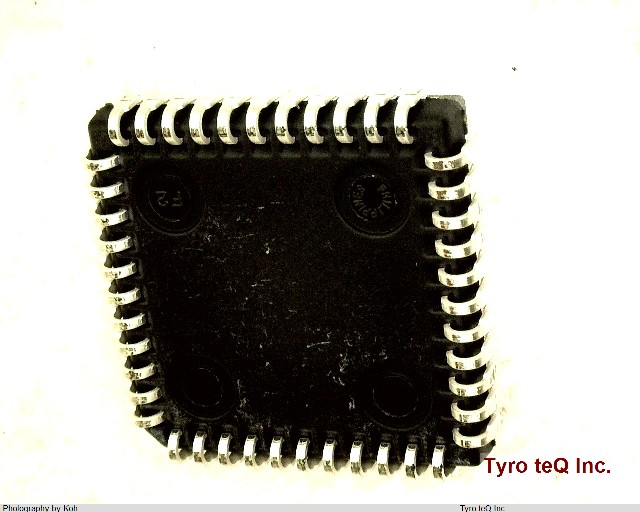

AY0438/L データシート

Name: AY0438/L
Brand: MICROCHIP
SKU: 110095528-0000-0000-0000

AY0438/L - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

AY0438/L の詳細情報

型番	AY0438/L
メーカー	MICROCHIP
データシート
Data Input Mode	SERIAL
Display Mode	SEGMENT
Interface IC Type	LIQUID CRYSTAL DISPLAY DRIVER
JESD-30 Code	S-PQCC-J44
JESD-609 Code	e3
Length	16.5862 mm
Moisture Sensitivity Level	1
Multiplexed Display Capability	NO
Number of Backplanes	1-BP
Number of Digits/Characters	4-DIGIT
Number of Functions	1
Number of Segments	32
Number of Terminals	44
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	QCCJ
Package Equivalence Code	LDCC44,.7SQ
Package Shape	SQUARE
Package Style	CHIP CARRIER Meter
Peak Reflow Temperature (Cel)	245
Power Supplies	5 V
Qualification Status	Not Qualified
Seated Height-Max	4.57 mm
Sub Category	Other Interface ICs
Supply Current-Max	0.06 mA
Supply Voltage-Max	8.5 V
Supply Voltage-Min	3 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	J BEND
Terminal Pitch	1.27 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	40
Width	16.5862 mm
fmax-Min	1.5 MHz
