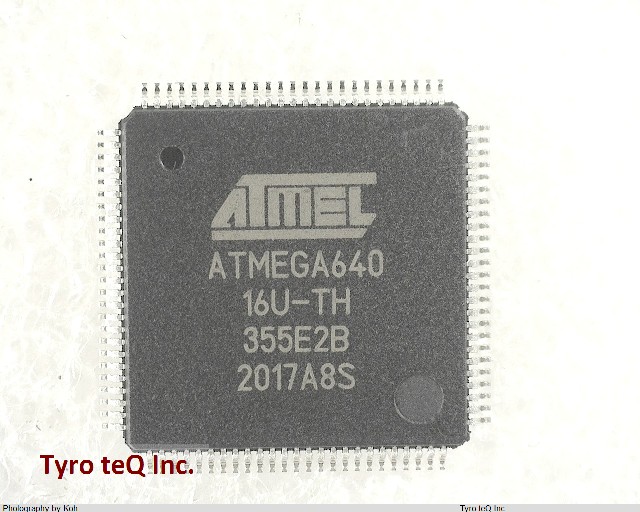

ATMEGA640-16AU

Name: ATMEGA640-16AU
Brand: MICROCHIP
SKU: 110269472-0000-0000-0000

ATMEGA640-16AU - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

ATMEGA640-16AU の詳細情報

型番	ATMEGA640-16AU
メーカー	MICROCHIP
A/D Converters	16-Ch 10-Bit
ADC Channels	YES
Additional Feature	ALSO OPERATES AT 2.7V MINIMUM SUPPLY AT 8 MHZ
Address Bus Width	16
Bit Size	8
Boundary Scan	YES
CPU Family	AVR RISC
Clock Frequency-Max	16 MHz
Clock Frequency-Max (MHz)	16
Connectivity	SPI, TWI, USART(4)
DAC Channels	NO
DLA Qualification	Not Qualified
DMA Channels	NO
Data EEPROM Size	4K
Data EEPROM Size (bytes)	4096
Data RAM Size (bytes)	8192
External Data Bus Width	8
Format	FIXED POINT
Integrated Cache	NO
J-STD-609 Code	e3
JESD-30 Code	S-PQFP-G100
Length	14 mm
Length (mm)	14
Low Power Mode	YES
Moisture Sensitivity Level	3
Number of External Interrupts	8
Number of I/O Lines	86
Number of Serial I/Os	4
Number of Terminals	100
Number of Timers	6
On Chip Data RAM Width	8
On Chip Program ROM Width	16
Operating Temperature-Max	85 Cel
Operating Temperature-Max (Cel)	85
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	-40
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	TFQFP
Package Equivalence Code	TQFP100,.63SQ
Package Shape	SQUARE
Package Style	FLATPACK, THIN PROFILE, FINE PITCH Meter
Peak Reflow Temperature (Cel)	260
Peripherals	BOD, COMPARATOR, POR, PWM(12), RTC, TIMER(6), WDT
Power Supplies	3/5 V
Program Memory Size (words)	32768
Program Memory Type	FLASH
Program Memory Width (bits)	16
Sub Category	Microcontrollers
Surface Mount	YES
