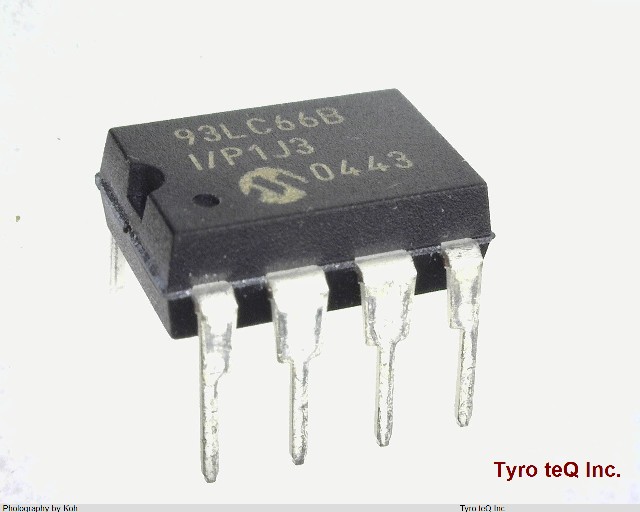

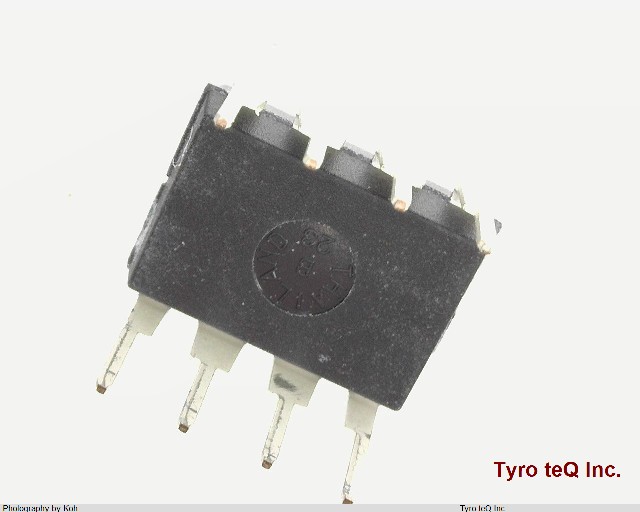

93LC66BIP

Name: 93LC66BIP
Brand: MICROCHIP
SKU: 100000919-0000-0000-0000

93LC66BIP - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

93LC66BIP の詳細情報

型番	93LC66BIP
メーカー	MICROCHIP
Additional Feature	1000000 ERASE/WRITE CYCLES MIN; DATA RETENTION > 200 YEARS
Clock Frequency-Max (MHz)	1
DLA Qualification	Not Qualified
Data Retention Time-Min	200
Endurance (Write/Erase Cycles)	1000000
J-STD-609 Code	e3
JESD-30 Code	R-PDIP-T8
Length (mm)	9.27
Memory Density (bits)	4096
Memory IC Type	EEPROM
Memory Organization	256X16
Memory Width	16
Number of Functions	1
Number of Ports	1
Number of Terminals	8
Number of Words (words)	256
Number of Words Code	256
Operating Mode	SYNCHRONOUS
Operating Temperature-Max (Cel)	85
Operating Temperature-Min (Cel)	-40
Output Characteristics	3-STATE
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Parallel/Serial	SERIAL
Power Supplies (V)	3/5
Ready/Busy	YES
Reverse Pinout	NO
Screening Level / Reference Standard	TS 16949
Seated Height-Max (mm)	5.33
Serial Bus Type	MICROWIRE
Standby Current-Max (A)	1.0E-6
Sub Category	EEPROMs
Supply Current-Max (mA)	2
Supply Voltage-Max (V)	5.5
Supply Voltage-Min (V)	1.8
Supply Voltage-Nom (V)	2.5
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch (mm)	2.54
Terminal Position	DUAL
Toggle Bit	YES
Width (mm)	7.62
Write Cycle Time-Max (tWC) (ms)	6
Write Protection	SOFTWARE
