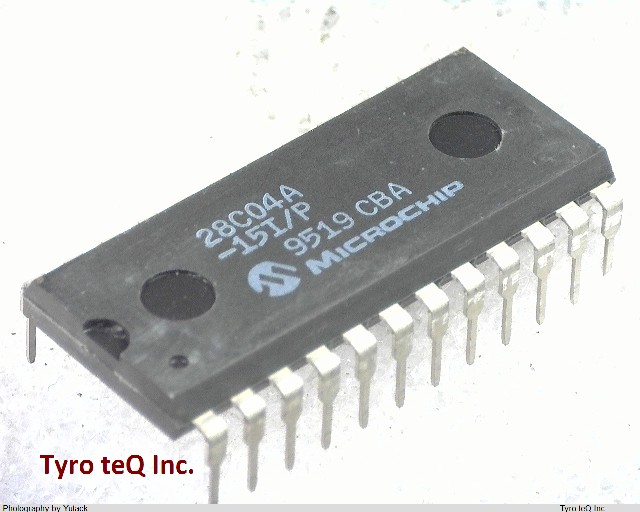

28C04A-15I/P

Name: 28C04A-15I/P
Brand: MICROCHIP
SKU: 30230340-0000-0000-0000

28C04A-15I/P - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

28C04A-15I/P の詳細情報

型番	28C04A-15I/P
メーカー	MICROCHIP
Access Time-Max (ns)	150
Additional Feature	10K WRITE/ERASE ENDURANCE MIN; DATA RETENTION >200 YEARS
Command User Interface	NO
DLA Qualification	Not Qualified
Data Polling	YES
Data Retention Time-Min	200
Endurance (Write/Erase Cycles)	10000
J-STD-609 Code	e0
JESD-30 Code	R-PDIP-T24
Length (mm)	31.75
Memory Density (bits)	4096
Memory IC Type	EEPROM
Memory Organization	512X8
Memory Width	8
Number of Functions	1
Number of Terminals	24
Number of Words (words)	512
Number of Words Code	512
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max (Cel)	85
Operating Temperature-Min (Cel)	-40
Output Characteristics	3-STATE
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP24,.6
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Parallel/Serial	PARALLEL
Power Supplies (V)	5
Programming Voltage (V)	5
Seated Height-Max (mm)	4.83
Standby Current-Max (A)	0.0001
Sub Category	EEPROMs
Supply Current-Max (mA)	32
Supply Voltage-Max (V)	5.5
Supply Voltage-Min (V)	4.5
Supply Voltage-Nom (V)	5
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Pitch (mm)	2.54
Terminal Position	DUAL
Toggle Bit	NO
Width (mm)	15.24
Write Cycle Time-Max (tWC) (ms)	1
