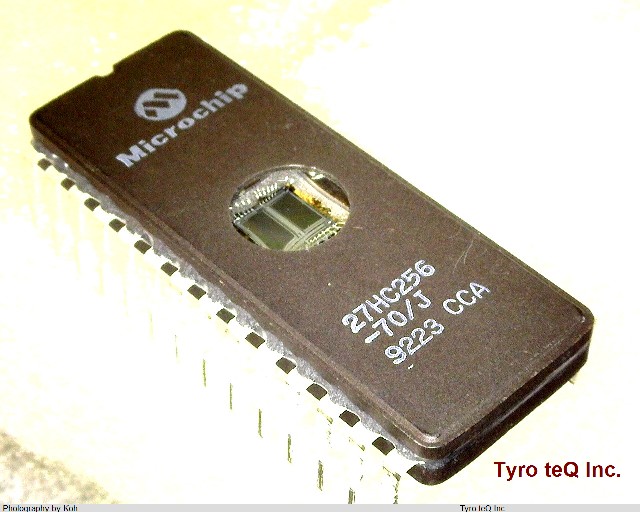

27HC256-70/J
1
-
- 個
２営業日以内に回答いたします
27HC256-70/J の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | 27HC256-70/J |
|---|---|
| メーカー | MICROCHIP |
| Access Time-Max (ns) | 70 |
| DLA Qualification | Not Qualified |
| I/O Type | COMMON |
| J-STD-609 Code | e0 |
| JESD-30 Code | R-GDIP-T28 |
| Length (mm) | 36.83 |
| Memory Density (bits) | 262144 |
| Memory IC Type | UVPROM |
| Memory Organization | 32KX8 |
| Memory Width | 8 |
| Number of Functions | 1 |
| Number of Terminals | 28 |
| Number of Words (words) | 32768 |
| Number of Words Code | 32K |
| Operating Mode | ASYNCHRONOUS |
| Operating Temperature-Max (Cel) | 70 |
| Operating Temperature-Min (Cel) | 0 |
| Output Characteristics | 3-STATE |
| Package Body Material | CERAMIC, GLASS-SEALED |
| Package Code | DIP |
| Package Equivalence Code | DIP28,.6 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE Meter |
| Parallel/Serial | PARALLEL |
| Power Supplies (V) | 5 |
| Programming Voltage (V) | 13 |
| Seated Height-Max (mm) | 5.461 |
| Standby Current-Max (A) | 0.035 |
| Sub Category | EPROMs |
| Supply Current-Max (mA) | 92 |
| Supply Voltage-Max (V) | 5.5 |
| Supply Voltage-Min (V) | 4.5 |
| Supply Voltage-Nom (V) | 5 |
| Surface Mount | NO |
| Technology | CMOS |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | TIN LEAD |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch (mm) | 2.54 |
| Terminal Position | DUAL |
| Width (mm) | 15.24 |
| 会社名称 | Microchip Technology Inc. |
|---|---|
| 所在地 | 2355 West Chandler Blvd. Chandler, Arizona, USA 85224-6199 |
| URL | http://www.microchip.com/ |
