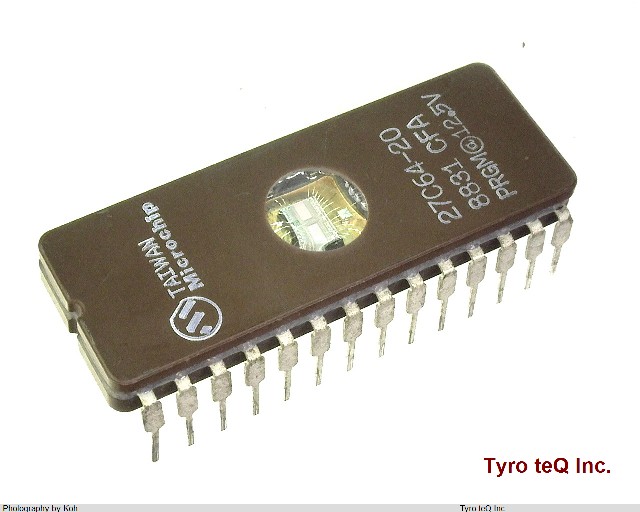

27C64-20/P データシート

Name: 27C64-20/P
Brand: MICROCHIP
SKU: 30083336-0000-0000-0000

27C64-20/P - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

27C64-20/P の詳細情報

型番	27C64-20/P
メーカー	MICROCHIP
データシート
Access Time-Max	200 ns
Access Time-Max (ns)	200
DLA Qualification	Not Qualified
I/O Type	COMMON
J-STD-609 Code	e0
JESD-30 Code	R-PDIP-T28
JESD-609 Code	e0
Length (mm)	36.32
Memory Density	65536 bit
Memory Density (bits)	65536
Memory IC Type	OTP ROM
Memory Organization	8KX8
Memory Width	8
Number of Functions	1
Number of Terminals	28
Number of Words	8192 words
Number of Words (words)	8192
Number of Words Code	8K
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Organization	8KX8
Output Characteristics	3-STATE
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP28,.6
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Parallel/Serial	PARALLEL
Power Supplies	5 V
Power Supplies (V)	5
Programming Voltage	12.5 V
Programming Voltage (V)	13
Qualification Status	Not Qualified
Seated Height-Max (mm)	4.83
Standby Current-Max (A)	0.0001
Sub Category	OTP ROMs
Supply Current-Max (mA)	20
Supply Voltage-Max (V)	5.5
Supply Voltage-Min (V)	4.5
Supply Voltage-Nom (V)	5
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Position	DUAL
