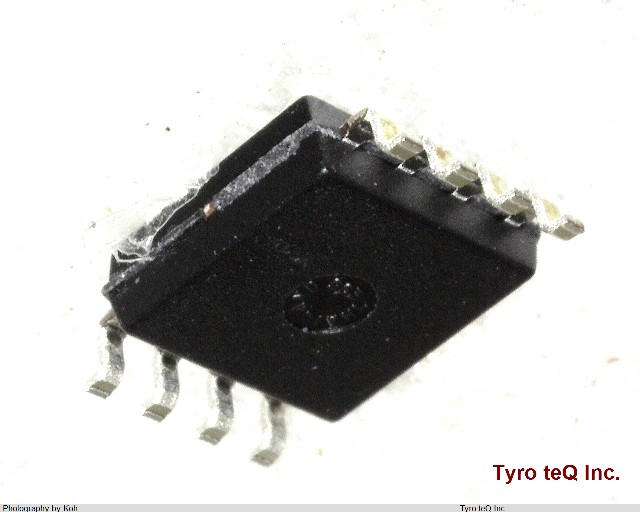

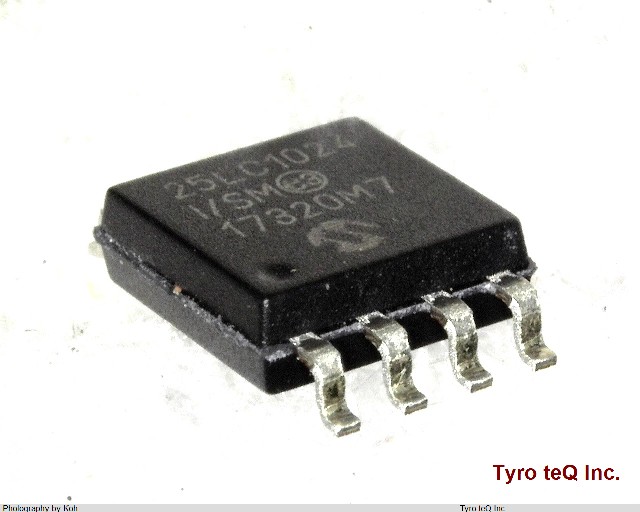

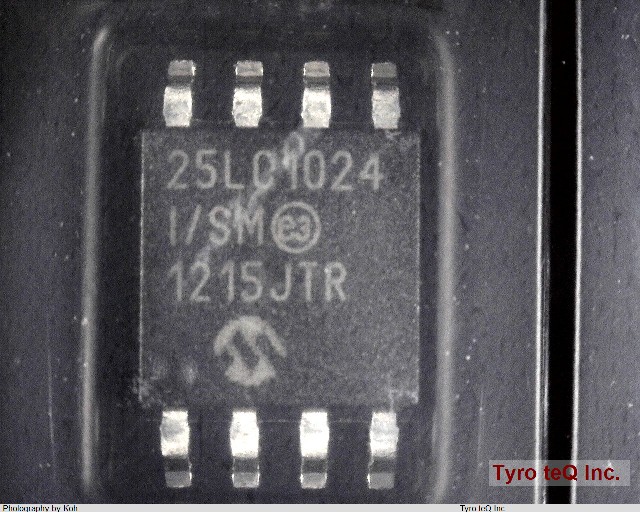

25LC1024-I/SM データシート

Name: 25LC1024-I/SM
Brand: MICROCHIP
SKU: 30104068-0000-0000-0000

25LC1024-I/SM - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

25LC1024-I/SM の詳細情報

型番	25LC1024-I/SM
メーカー	MICROCHIP
データシート
Additional Feature	200 YEARS OF DATA RETENTION; 1000000 ENDURANCE CYCLES/WORD
Clock Frequency-Max (MHz)	20
DLA Qualification	Not Qualified
Data Retention Time-Min	200
Endurance (Write/Erase Cycles)	100000
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G8
Length (mm)	5.26
Memory Density (bits)	1048576
Memory IC Type	EEPROM
Memory Organization	128KX8
Memory Width	8
Moisture Sensitivity Level	1
Number of Functions	1
Number of Ports	1
Number of Terminals	8
Number of Words (words)	131072
Number of Words Code	128K
Operating Mode	SYNCHRONOUS
Operating Temperature-Max (Cel)	85
Operating Temperature-Min (Cel)	-40
Output Characteristics	3-STATE
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Parallel/Serial	SERIAL
Peak Reflow Temperature (Cel)	260
Power Supplies (V)	3/5
Programming Voltage (V)	5
Seated Height-Max (mm)	2.03
Serial Bus Type	SPI
Standby Current-Max (A)	1.0E-5
Sub Category	Flash Memories
Supply Current-Max (mA)	10
Supply Voltage-Max (V)	5.5
Supply Voltage-Min (V)	4.5
Supply Voltage-Nom (V)	5
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch (mm)	1.27
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	40
Type	NOR TYPE
Width (mm)	5.21
Write Cycle Time-Max (tWC) (ms)	5
