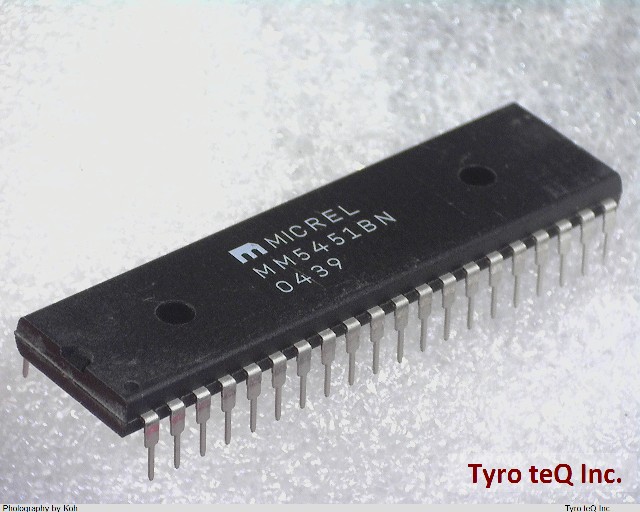

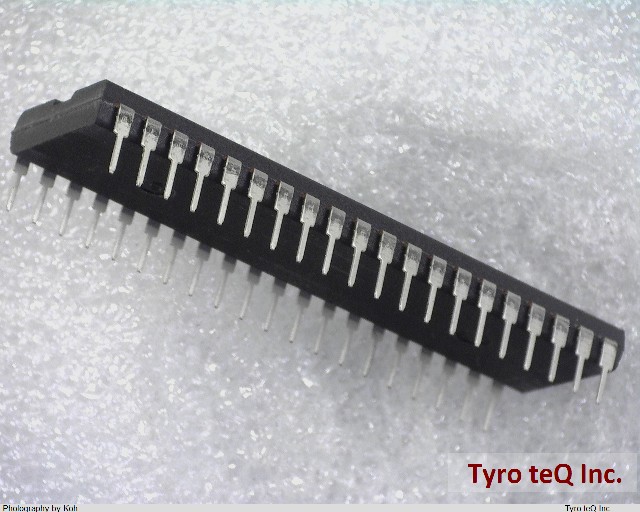

MM5451BN データシート

Name: MM5451BN
Brand: MICREL
SKU: 230056697-0000-0000-0000

MM5451BN - MICREL の商品詳細ページです。

２営業日以内に回答いたします

MM5451BN の詳細情報

型番	MM5451BN
メーカー	MICREL
データシート
Additional Feature	COMMON-ANODE
Data Input Mode	SERIAL
Display Mode	SEGMENT
Input Characteristics	STANDARD
Interface IC Type	LED DISPLAY DRIVER
JESD-30 Code	R-PDIP-T40
JESD-609 Code	e0
Length	51.816 mm
Multiplexed Display Capability	NO
Number of Digits/Characters	5-DIGIT
Number of Functions	1
Number of Segments	35
Number of Terminals	40
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	OPEN-DRAIN
Output Polarity	INVERTED
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP40,.6
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5/10 V
Qualification Status	Not Qualified
Seated Height-Max	4.318 mm
Sub Category	Display Drivers
Supply Voltage-Max	11 V
Supply Voltage-Min	4.5 V
Surface Mount	NO
Technology	NMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	15.24 mm
fmax-Min	0.5 MHz
