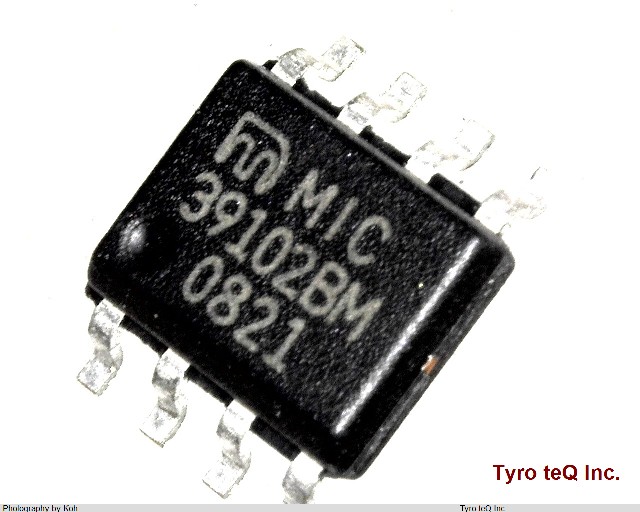

MIC39102BM データシート

Name: MIC39102BM
Brand: MICREL
SKU: 230008561-0000-0000-0000

MIC39102BM - MICREL の商品詳細ページです。

２営業日以内に回答いたします

MIC39102BM の詳細情報

型番	MIC39102BM
メーカー	MICREL
データシート
Adjustability	ADJUSTABLE
Dropout Voltage1-Max	0.63 V
Dropout Voltage1-Nom	0.41 V
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e0
Length	4.93 mm
Line Regulation-Max (%/V)	0.036
Load Regulation-Max(%)	1 %
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	1
Number of Terminals	8
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	-40 Cel
Output Current1-Max	1 A
Output Voltage1-Max	16 V
Output Voltage1-Min	1.24 V
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	240
Qualification Status	Not Qualified
Regulator Type	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max	1.73 mm
Sub Category	Other Regulators
Surface Mount	YES
Technology	BIPOLAR
Terminal Finish	TIN LEAD
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	3.94 mm
