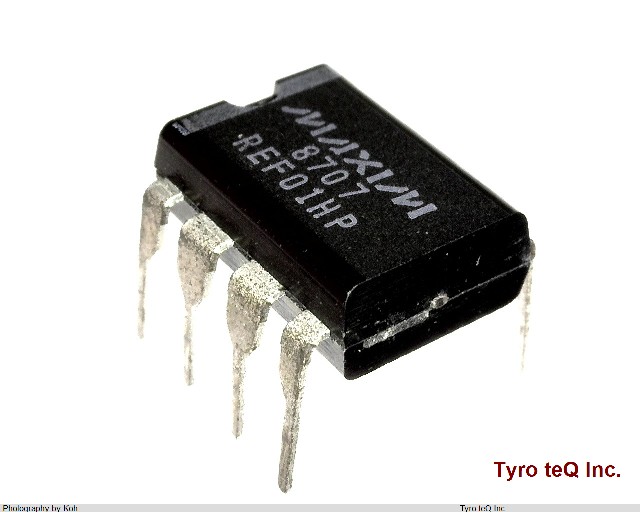

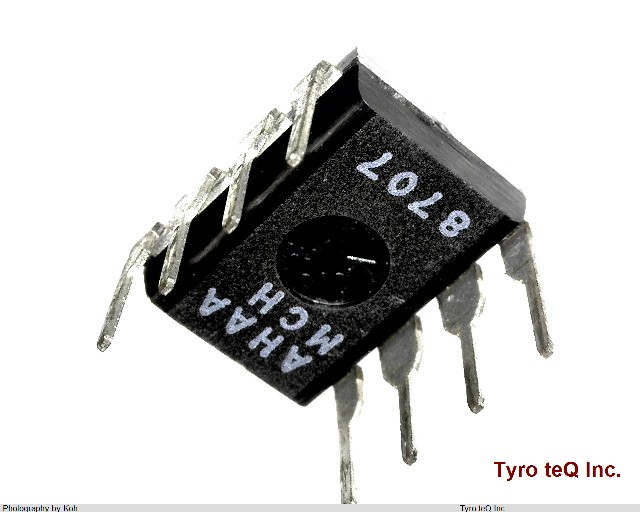

REF01HP

Name: REF01HP
Brand: MAXIM
SKU: 280425334-0000-0000-0000

REF01HP - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

REF01HP の詳細情報

型番	REF01HP
メーカー	MAXIM
Additional Feature	OUTPUT VOLTAGE ADJUSTABLE 3 PERCENT
Analog IC - Other Type	THREE TERMINAL VOLTAGE REFERENCE
DLA Qualification	Not Qualified
J-STD-609 Code	e3
JESD-30 Code	O-MBCY-W8
JESD-609 Code	e0
Length	9.27 mm
Length (mm)	9.27
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	1
Number of Terminals	8
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	-55 Cel
Operating Temperature-Min (Cel)	-40
Output Voltage-Max	10.05 V
Output Voltage-Max (V)	10.05
Output Voltage-Min	9.95 V
Output Voltage-Min (V)	9.95
Output Voltage-Nom	10 V
Output Voltage-Nom (V)	10
Package Body Material	METAL
Package Code	DIP
Package Equivalence Code	CAN8,.2
Package Shape	RECTANGULAR
Package Style	CYLINDRICAL Meter
Peak Reflow Temperature (Cel)	240
Qualification Status	Not Qualified
Seated Height-Max	4.572 mm
Seated Height-Max (mm)	4.572
Sub Category	Voltage References
Supply Current-Max (Isup)	1.4 mA
Supply Current-Max (mA)	1.4
Supply Voltage-Max (V)	33
Supply Voltage-Max (Vsup)	33 V
Supply Voltage-Min (Vsup)	12 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	NO
Technology	BIPOLAR
Temp Coef of Voltage-Max	25 ppm/Cel
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	20
Trim/Adjustable Output	NO V
Voltage Tolerance-Max	0.5 %
Width	7.62 mm
