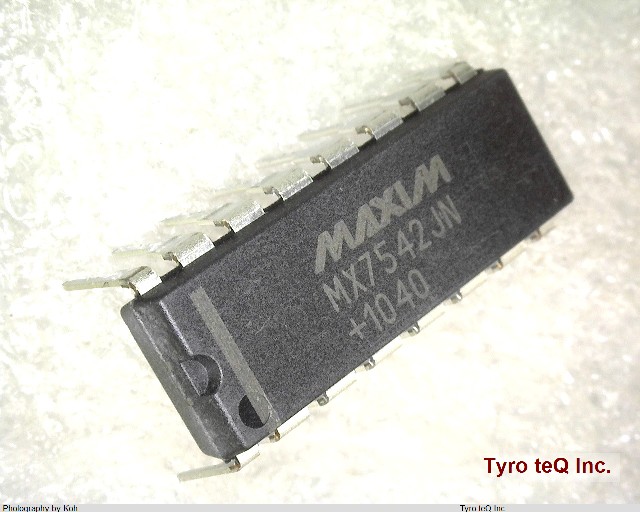

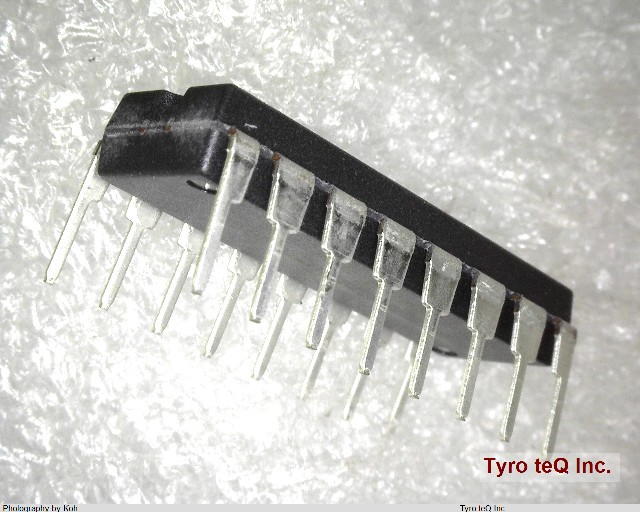

MX7542JN データシート

Name: MX7542JN
Brand: MAXIM
SKU: 230005183-0000-0000-0000

MX7542JN - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MX7542JN の詳細情報

型番	MX7542JN
メーカー	MAXIM
データシート
Converter Type	D/A CONVERTER
DLA Qualification	Not Qualified
Input Bit Code	BINARY, OFFSET BINARY
Input Format	PARALLEL, 4 BITS
J-STD-609 Code	e3
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e0
Length	19.175 mm
Length (mm)	19.175
Linearity Error-Max (EL)	0.0244 %
Linearity Error-Max (EL) (%)	0.0244
Moisture Sensitivity Level	1
Number of Bits	12
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	245
Power Supplies	5 V
Power Supplies (V)	5
Qualification Status	Not Qualified
Seated Height-Max	4.572 mm
Seated Height-Max (mm)	4.572
Settling Time-Max	2 us
Settling Time-Max (us)	2
Sub Category	Other Converters
Supply Current-Max	2.5 mA
Supply Current-Max (mA)	2.5
Supply Voltage-Nom	5 V
Supply Voltage-Nom (V)	5
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Pitch (mm)	2.54
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	7.62 mm
Width (mm)	7.62
