MAX9910EXKT データシート

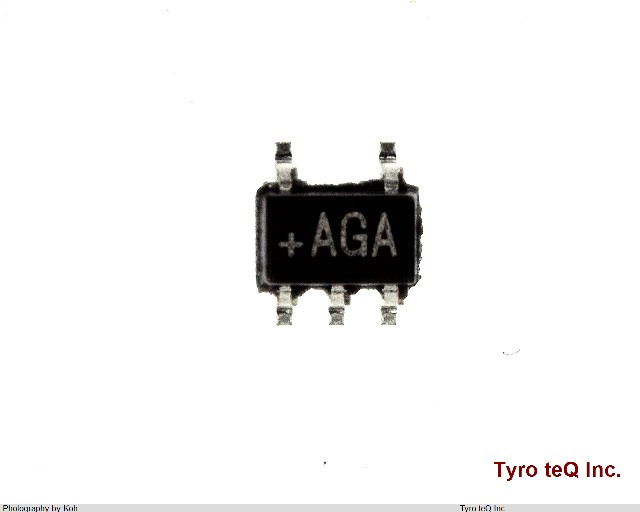

Name: MAX9910EXKT
Brand: MAXIM
SKU: 230524494-0000-0000-0000

MAX9910EXKT - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX9910EXKT の詳細情報

型番	MAX9910EXKT
メーカー	MAXIM
データシート
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	1.0E-5 uA
Bias Current-Max (IIB) @25C	1.0E-5 uA
Common-mode Reject Ratio-Nom	80 dB
Frequency Compensation	YES
Input Offset Voltage-Max	1000 uV
JESD-30 Code	R-PDSO-G5
JESD-609 Code	e0
Length	2 mm
Low-Bias	YES
Low-Offset	NO
Micropower	YES
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	5
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP5/6,.08
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Packing Method	TAPE AND REEL
Power	NO
Power Supplies	2/5 V
Programmable Power	NO
Qualification Status	Not Qualified
Seated Height-Max	1.1 mm
Slew Rate-Nom	0.1 V/us
Sub Category	Operational Amplifier
Supply Current-Max	0.0055 mA
Supply Voltage Limit-Max	6 V
Supply Voltage-Nom (Vsup)	1.8 V
Surface Mount	YES
Technology	BICMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN LEAD
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Unity Gain BW-Nom	200 kHz
Voltage Gain-Min	10000
Wideband	NO
Width	1.25 mm
