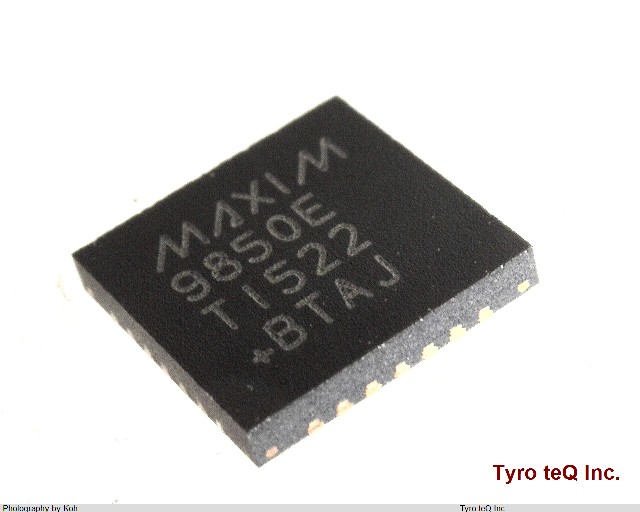

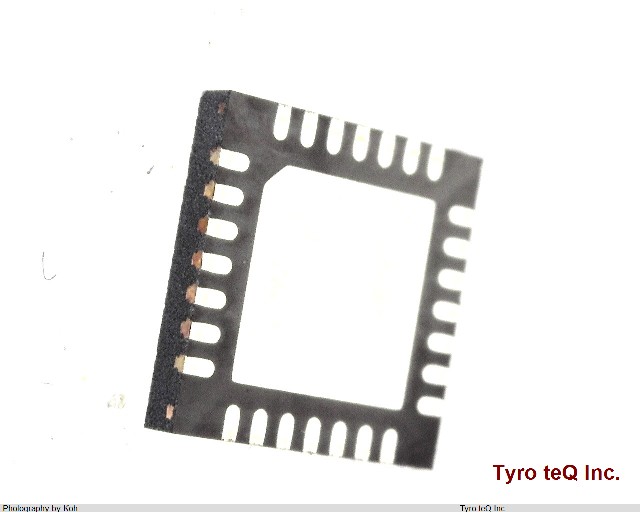

MAX9850ETI+ データシート

Name: MAX9850ETI+
Brand: MAXIM
SKU: 230482212-0000-0000-0000

MAX9850ETI+ - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX9850ETI+ の詳細情報

型番	MAX9850ETI+
メーカー	MAXIM
データシート
Consumer IC Type	CONSUMER CIRCUIT
DLA Qualification	Not Qualified
J-STD-609 Code	e3
JESD-30 Code	S-XQCC-N28
JESD-609 Code	e3
Length	5 mm
Length (mm)	5
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	28
Operating Temperature-Max	85 Cel
Operating Temperature-Max (Cel)	85
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	-40
Package Body Material	UNSPECIFIED
Package Code	HVQCCN
Package Equivalence Code	LCC28,.2SQ,20
Package Shape	SQUARE
Package Style	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	2/3.3 V
Power Supplies (V)	2/3.3
Qualification Status	Not Qualified
Seated Height-Max	0.8 mm
Seated Height-Max (mm)	0.8
Sub Category	Audio/Video Amplifiers
Supply Voltage-Max (V)	3.6
Supply Voltage-Max (Vsup)	3.6 V
Supply Voltage-Min (V)	1.8
Supply Voltage-Min (Vsup)	1.8 V
Surface Mount	YES
Technology	BICMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	NO LEAD
Terminal Pitch	0.5 mm
Terminal Pitch (mm)	0.5
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	30
Width	5 mm
Width (mm)	5
