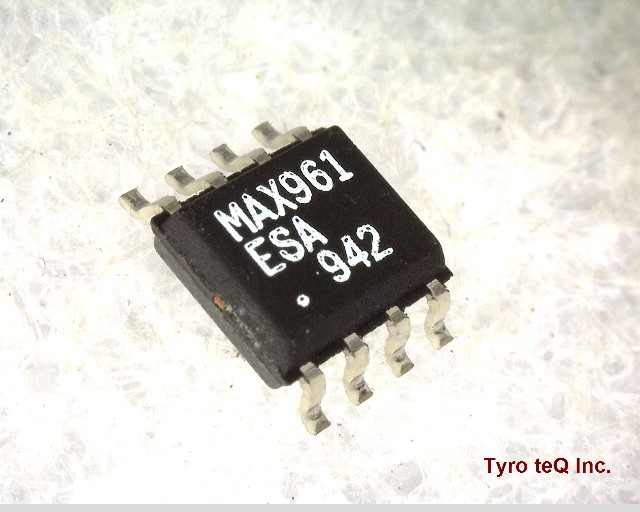

MAX961ESA データシート

Name: MAX961ESA
Brand: MAXIM
SKU: 230007126-0000-0000-0000

MAX961ESA - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX961ESA の詳細情報

型番	MAX961ESA
メーカー	MAXIM
データシート
Amplifier Type	COMPARATOR
Average Bias Current-Max (IIB)	15 uA
Average Bias Current-Max (IIB) (uA)	15
Bias Current-Max (IIB) @25C	15 uA
Bias Current-Max (IIB) @25C (uA)	15
DLA Qualification	Not Qualified
Input Offset Voltage-Max	2000 uV
Input Offset Voltage-Max (uV)	2000
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e0
Length	4.9 mm
Length (mm)	4.9
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Max (Cel)	85
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	-40
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	240
Power Supplies	3/5 V
Power Supplies (V)	3/5
Qualification Status	Not Qualified
Response Time-Nom	4.5 ns
Response Time-Nom (ns)	4.5
Seated Height-Max	1.75 mm
Seated Height-Max (mm)	1.75
Sub Category	Comparator
Supply Current-Max	11 mA
Supply Current-Max (mA)	11
Supply Voltage Limit-Max	5.5 V
Supply Voltage Limit-Max (V)	5.5
Supply Voltage-Nom (V)	3
Supply Voltage-Nom (Vsup)	3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Pitch (mm)	1.27
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	20
Width	3.9 mm
