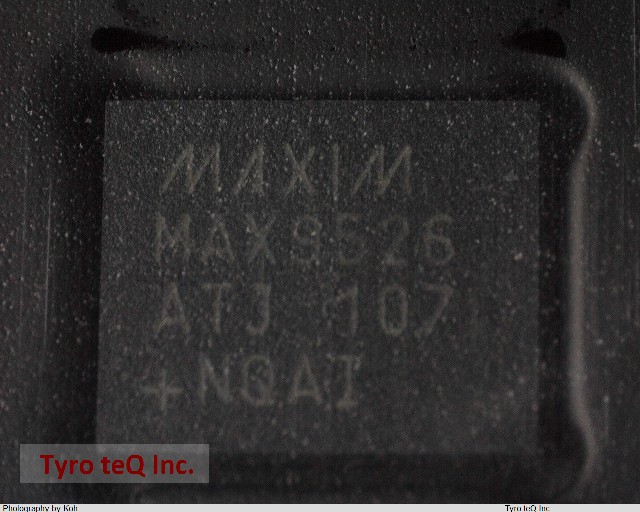

MAX9526ATJ データシート

Name: MAX9526ATJ
Brand: MAXIM
SKU: 230484610-0000-0000-0000

MAX9526ATJ - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX9526ATJ の詳細情報

型番	MAX9526ATJ
メーカー	MAXIM
データシート
Consumer IC Type	COLOR SIGNAL DECODER
DLA Qualification	Not Qualified
J-STD-609 Code	e3
JESD-30 Code	R-XQCC-N32
JESD-609 Code	e3
Length	6 mm
Length (mm)	6
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	32
Operating Temperature-Max	125 Cel
Operating Temperature-Max (Cel)	125
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	-40
Package Body Material	UNSPECIFIED
Package Code	HVQCCN
Package Equivalence Code	LCC32,.20X.25,20
Package Shape	RECTANGULAR
Package Style	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	1.8,3.3 V
Power Supplies (V)	1.8,3.3
Qualification Status	Not Qualified
Screening Level	AEC-Q100
Screening Level / Reference Standard	AEC-Q100
Seated Height-Max	0.8 mm
Seated Height-Max (mm)	0.8
Sub Category	Color Signal Converters
Supply Current-Max	110 mA
Supply Current-Max (mA)	110
Supply Voltage-Max (V)	1.9
Supply Voltage-Max (Vsup)	1.9 V
Supply Voltage-Min (V)	1.7
Supply Voltage-Min (Vsup)	1.7 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	AUTOMOTIVE
Terminal Finish	MATTE TIN
Terminal Form	NO LEAD
Terminal Pitch	0.5 mm
Terminal Pitch (mm)	0.5
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	30
Width	5 mm
Width (mm)	5
