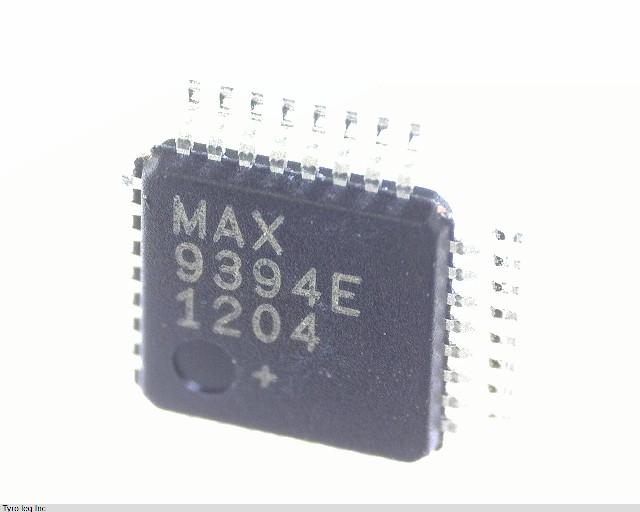

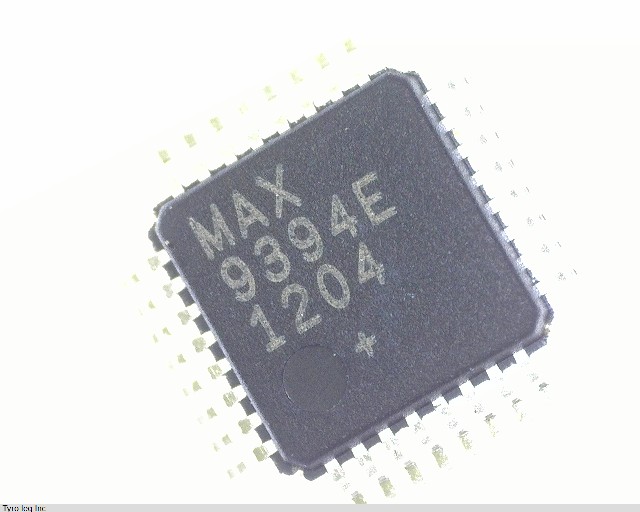

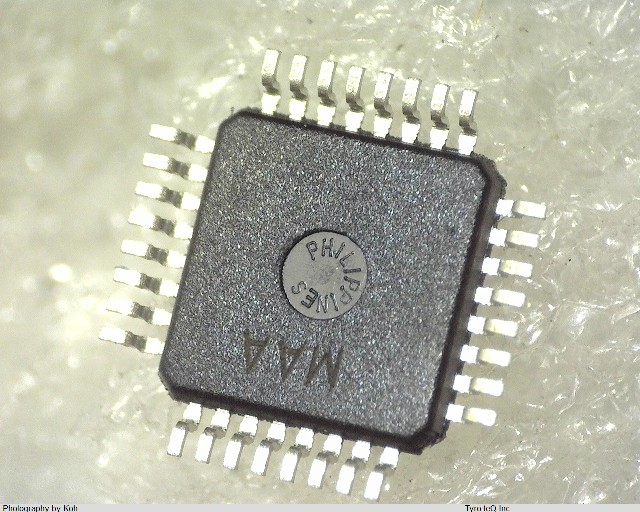

MAX9394EHJ データシート

Name: MAX9394EHJ
Brand: MAXIM
SKU: 230651471-0000-0000-0000

MAX9394EHJ - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX9394EHJ の詳細情報

型番	MAX9394EHJ
メーカー	MAXIM
データシート
DLA Qualification	Not Qualified
Differential Output	YES
Driver Number of Bits	1
Input Characteristics	DIFFERENTIAL
Interface IC Type	LINE TRANSCEIVER
Interface Standard	EIA-644; TIA-644
J-STD-609 Code	e3
JESD-30 Code	S-PQFP-G32
JESD-609 Code	e0
Length	5 mm
Length (mm)	5
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	32
Operating Temperature-Max	85 Cel
Operating Temperature-Max (Cel)	85
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	-40
Package Body Material	PLASTIC/EPOXY
Package Code	TFQFP
Package Shape	SQUARE
Package Style	FLATPACK, THIN PROFILE, FINE PITCH Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Receive Delay-Max	0.72 ns
Receive Delay-Max (ns)	0.72
Receiver Number of Bits	1
Seated Height-Max	1.2 mm
Seated Height-Max (mm)	1.2
Supply Voltage-Max	3.6 V
Supply Voltage-Max (V)	3.6
Supply Voltage-Min	3 V
Supply Voltage-Min (V)	3
Supply Voltage-Nom	3.3 V
Supply Voltage-Nom (V)	3.3
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Pitch (mm)	0.5
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	30
Transmit Delay-Max	0.72 ns
Transmit Delay-Max (ns)	0.72
Width	5 mm
Width (mm)	5
