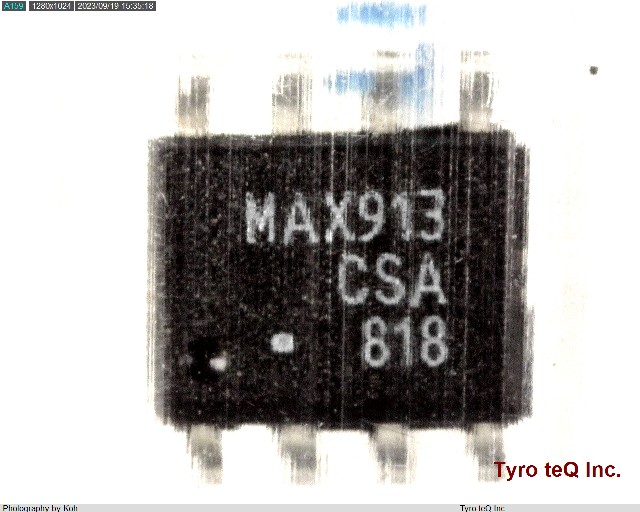

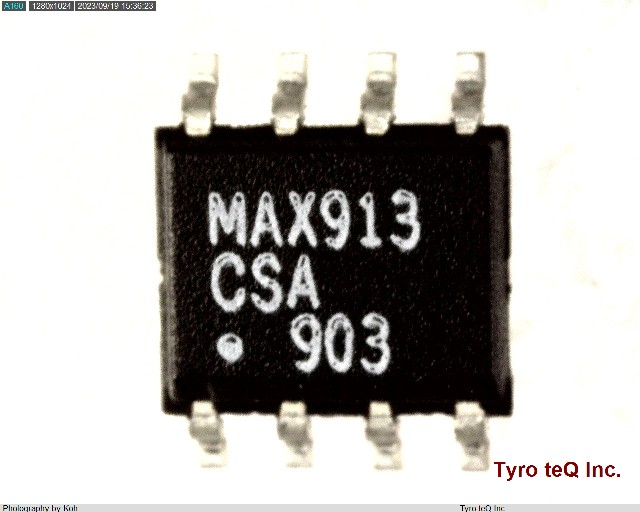

MAX913CSA データシート

Name: MAX913CSA
Brand: MAXIM
SKU: 230004050-0000-0000-0000

MAX913CSA - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX913CSA の詳細情報

型番	MAX913CSA
メーカー	MAXIM
データシート
Amplifier Type	COMPARATOR
Average Bias Current-Max (IIB)	8 uA
Average Bias Current-Max (IIB) (uA)	8
Bias Current-Max (IIB) @25C	5 uA
Bias Current-Max (IIB) @25C (uA)	5
DLA Qualification	Not Qualified
Input Offset Voltage-Max	3000 uV
Input Offset Voltage-Max (uV)	3000
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e0
Length	4.9 mm
Length (mm)	4.9
Moisture Sensitivity Level	1
Neg Supply Voltage Limit-Max	-7 V
Neg Supply Voltage Limit-Max (V)	-7
Neg Supply Voltage-Nom (Vsup)	-5 V
Negative Supply Voltage-Nom (V)	-5
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	245
Power Supplies	5/+-5 V
Power Supplies (V)	5/+-5
Qualification Status	Not Qualified
Response Time-Nom	10 ns
Response Time-Nom (ns)	10
Seated Height-Max	1.75 mm
Seated Height-Max (mm)	1.75
Sub Category	Comparator
Supply Current-Max	10 mA
Supply Voltage Limit-Max	7 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	3.9 mm
