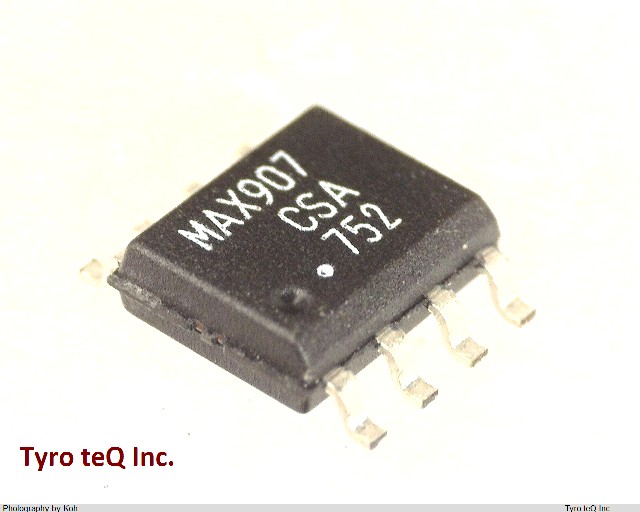

Name: MAX907CSA
Brand: MAXIM
SKU: 230007095-0000-0000-0000

MAX907CSA - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX907CSA の詳細情報

型番	MAX907CSA
メーカー	MAXIM
データシート
Amplifier Type	COMPARATOR
Average Bias Current-Max (IIB)	0.5 uA
Bias Current-Max (IIB) @25C	0.3 uA
Input Offset Voltage-Max	3000 uV
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e0
Length	4.9 mm
Moisture Sensitivity Level	1
Number of Functions	2
Number of Terminals	8
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	240
Power Supplies	5 V
Qualification Status	Not Qualified
Response Time-Nom	45 ns
Seated Height-Max	1.75 mm
Sub Category	Comparator
Supply Current-Max	1 mA
Supply Voltage Limit-Max	6 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	20
Width	3.9 mm
