MAX8556ETE+ データシート

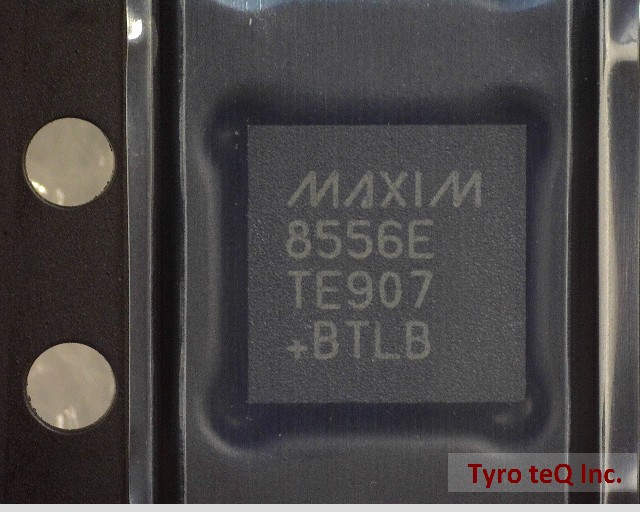

Name: MAX8556ETE+
Brand: MAXIM
SKU: 230453531-0000-0000-0000

MAX8556ETE+ - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX8556ETE+ の詳細情報

型番	MAX8556ETE+
メーカー	MAXIM
データシート
Adjustability	ADJUSTABLE
DLA Qualification	Not Qualified
Dropout Voltage1-Max	0.2 V
Dropout Voltage1-Max (V)	0.2
Dropout Voltage1-Nom	0.1 V
Dropout Voltage1-Nom (V)	0.1
J-STD-609 Code	e3
JESD-30 Code	S-XQCC-N16
JESD-609 Code	e3
Length	5 mm
Length (mm)	5
Line Regulation-Max (%/V)	0.15
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	1
Number of Terminals	16
Operating Temperature TJ-Max (Cel)	150
Operating Temperature, TJ-Max	150 Cel
Operating Temperature-Max	85 Cel
Operating Temperature-Max (Cel)	85
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	-40
Output Current1-Max	4 A
Output Current1-Max (A)	4
Output Voltage1-Max	3.4 V
Output Voltage1-Max (V)	3.4
Output Voltage1-Min	0.5 V
Output Voltage1-Min (V)	0.5
Package Body Material	UNSPECIFIED
Package Code	HVQCCN
Package Equivalence Code	LCC16,.2SQ,32
Package Shape	SQUARE
Package Style	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Regulator Type	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max	0.8 mm
Seated Height-Max (mm)	0.8
Sub Category	Other Regulators
Surface Mount	YES
Technology	BICMOS
Terminal Finish	MATTE TIN
Terminal Form	NO LEAD
Terminal Pitch	0.8 mm
Terminal Pitch (mm)	0.8
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	30
Width	5 mm
Width (mm)	5
