MAX8505EEET データシート

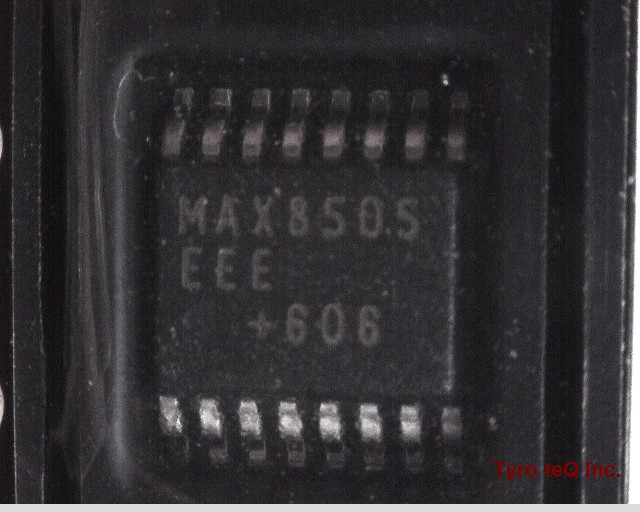

Name: MAX8505EEET
Brand: MAXIM
SKU: 230011554-0000-0000-0000

MAX8505EEET - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX8505EEET の詳細情報

型番	MAX8505EEET
メーカー	MAXIM
データシート
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	CURRENT-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	5.5 V
Input Voltage-Min	2.6 V
Input Voltage-Nom	3.3 V
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e0
Length	4.9 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	3 A
Package Body Material	PLASTIC/EPOXY
Package Code	SSOP
Package Equivalence Code	SSOP16,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, SHRINK PITCH Meter
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Sub Category	Switching Regulator or Controllers
Surface Mount	YES
Switcher Configuration	BUCK
Switching Frequency-Max	1150 kHz
Technology	BICMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN LEAD
Terminal Form	GULL WING
Terminal Pitch	0.635 mm
Terminal Position	DUAL
Width	3.9 mm
