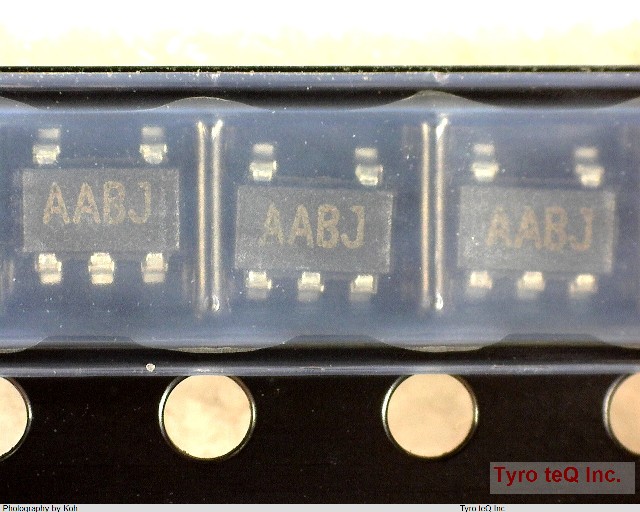

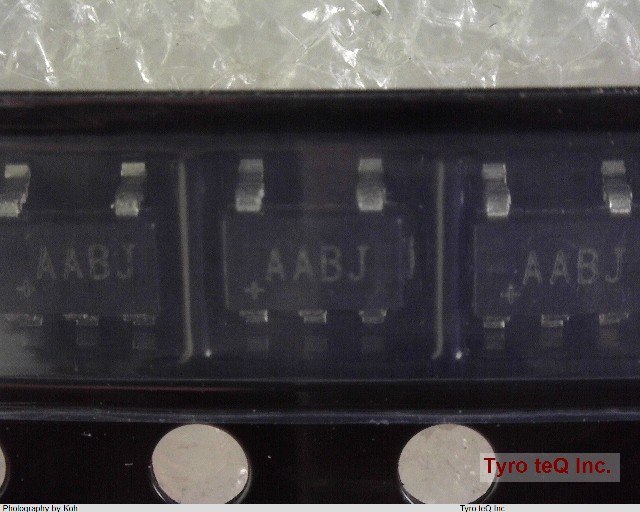

MAX829EUK

Name: MAX829EUK
Brand: MAXIM
SKU: 230746670-0000-0000-0000

MAX829EUK - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX829EUK の詳細情報

型番	MAX829EUK
メーカー	MAXIM
Analog IC - Other Type	SWITCHED CAPACITOR CONVERTER
DLA Qualification	Not Qualified
Input Voltage-Max	5.5 V
Input Voltage-Max (V)	5.5
Input Voltage-Min	1.15 V
Input Voltage-Min (V)	1.5
Input Voltage-Nom	5 V
Input Voltage-Nom (V)	5
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G5
JESD-609 Code	e0
Length	2.9 mm
Length (mm)	2.9
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	5
Operating Temperature-Max	85 Cel
Operating Temperature-Max (Cel)	85
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	-40
Output Current-Max	0.05 A
Output Voltage-Max	-5.5 V
Output Voltage-Min	-1.15 V
Output Voltage-Nom	-5 V
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Equivalence Code	TSOP5/6,.11,37
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	235
Qualification Status	Not Qualified
Seated Height-Max	1.1 mm
Seated Height-Max (mm)	1.45
Sub Category	Other Analog ICs
Supply Current-Max (Isup)	0.2 mA
Surface Mount	YES
Switcher Configuration	DOUBLER INVERTER
Switching Frequency-Max	54 kHz
Switching Frequency-Max (kHz)	54.3
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.95 mm
Terminal Pitch (mm)	0.95
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	20
Width	1.5 mm
Width (mm)	1.625
