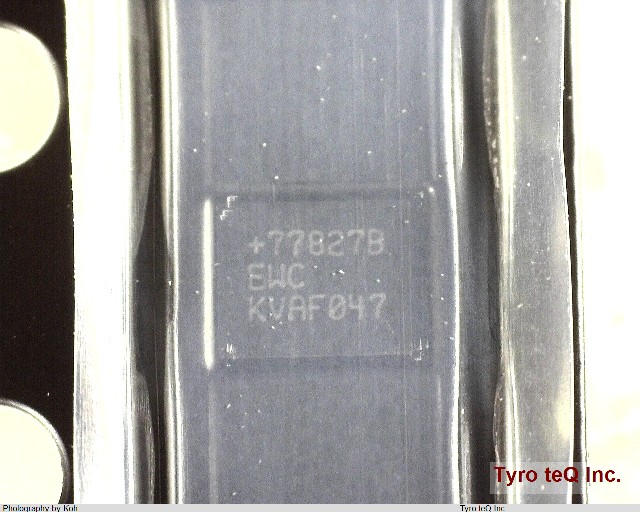

MAX77827BEWC+T

Name: MAX77827BEWC+T
Brand: MAXIM
SKU: 400045730-0000-0000-0000

MAX77827BEWC+T - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX77827BEWC+T の詳細情報

型番	MAX77827BEWC+T
メーカー	MAXIM
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	CURRENT-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	5.5 V
Input Voltage-Min	2.6 V
Input Voltage-Nom	3.8 V
JESD-30 Code	R-PBGA-B12
JESD-609 Code	e2
Length	2.008 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	12
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	2.3 A
Output Voltage-Max	5.3 V
Output Voltage-Min	2.3 V
Output Voltage-Nom	3.3 V
Package Body Material	PLASTIC/EPOXY
Package Code	VFBGA
Package Equivalence Code	BGA12,3X4,16
Package Shape	RECTANGULAR
Package Style	GRID ARRAY, VERY THIN PROFILE, FINE PITCH Meter
Peak Reflow Temperature (Cel)	260
Seated Height-Max	0.69 mm
Supply Current-Max (Isup)	6 mA
Surface Mount	YES
Switcher Configuration	BUCK-BOOST
Switching Frequency-Max	2800 kHz
Temperature Grade	AUTOMOTIVE
Terminal Finish	TIN SILVER COPPER NICKEL
Terminal Form	BALL
Terminal Pitch	0.4 mm
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	30
Width	1.608 mm
