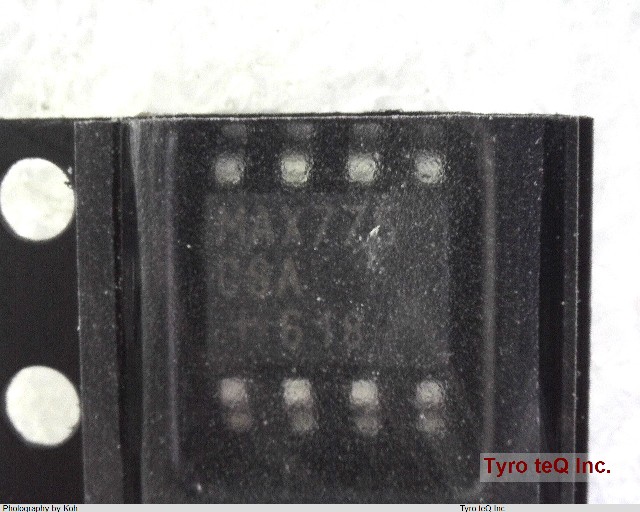

MAX775CSAT データシート

Name: MAX775CSAT
Brand: MAXIM
SKU: 230011447-0000-0000-0000

MAX775CSAT - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX775CSAT の詳細情報

型番	MAX775CSAT
メーカー	MAXIM
データシート
Analog IC - Other Type	SWITCHING CONTROLLER
Control Mode	CURRENT-MODE
Control Technique	PULSE FREQUENCY MODULATION
Input Voltage-Max	16.5 V
Input Voltage-Min	3 V
Input Voltage-Nom	5 V
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e0
Length	4.9 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Current-Max	0.5 A
Output Voltage-Nom	-12 V
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	240
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Sub Category	Switching Regulator or Controllers
Supply Current-Max (Isup)	0.1 mA
Surface Mount	YES
Switcher Configuration	BUCK-BOOST
Switching Frequency-Max	300 kHz
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	20
Width	3.9 mm
